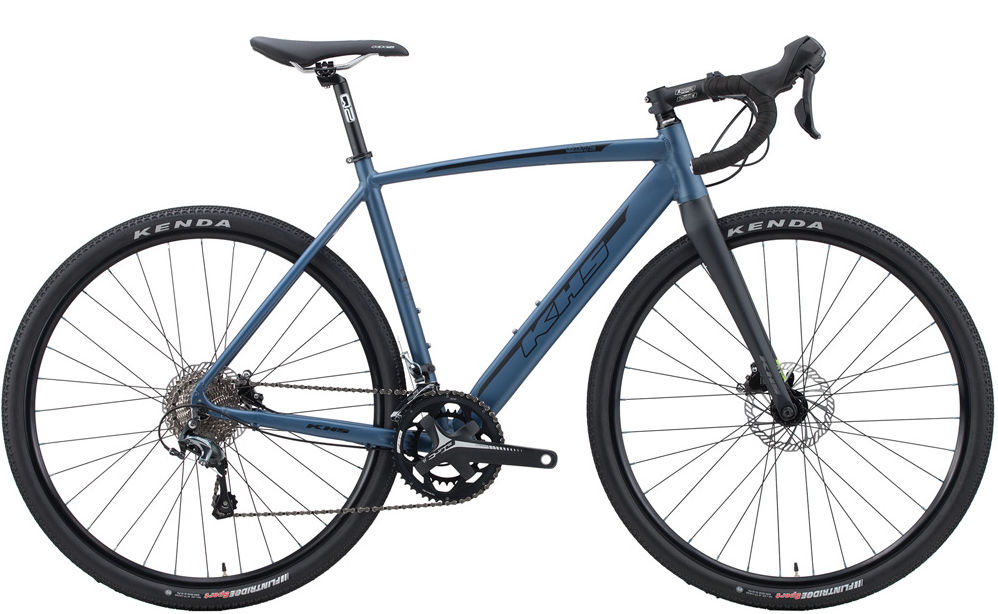

2018 KHS Grit Aluminium geometry
Full frame geometry for the 2018 KHS Grit Aluminium, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|---|
| XS | 533 | 369 | 75 | 71 | 105 | 512 | 460 | 754 | 432 |
| S | 547 | 366 | 73 | 71 | 120 | 533 | 495 | 778 | 432 |
| M | 565 | 385 | 73 | 72 | 135 | 558 | 534 | 805 | 432 |
| L | 589 | 400 | 73 | 72 | 160 | 580 | 572 | 834 | 432 |
All measurements in millimetres unless marked (°) for angles.
