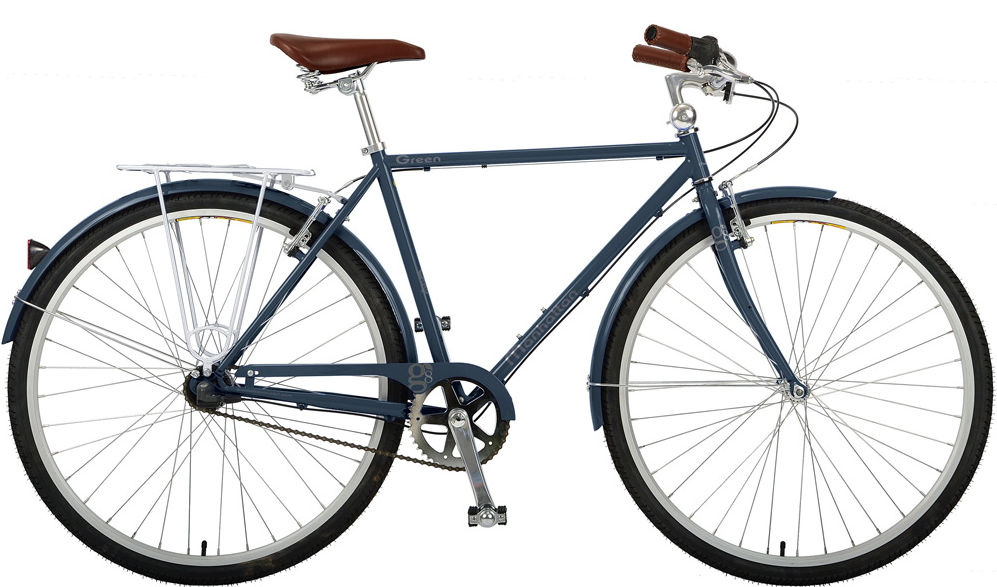

2018 KHS Green geometry
Full frame geometry for the 2018 KHS Green, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|---|
| L | 503 | 416 | 73 | 72 | 80 | 570 | 508 | 777 | 448 |
| M | 503 | 402 | 73 | 72 | 80 | 556 | 430 | 738 | 448 |
| XL | 560 | 428 | 73 | 72 | 140 | 599 | 584 | 842 | 448 |
| ML | 579 | 378 | 73 | 72 | 160 | 555 | 430 | — | 448 |
| S-Low | 579 | 370 | 73.5 | 72 | 160 | 541 | 356 | — | 448 |
All measurements in millimetres unless marked (°) for angles.
