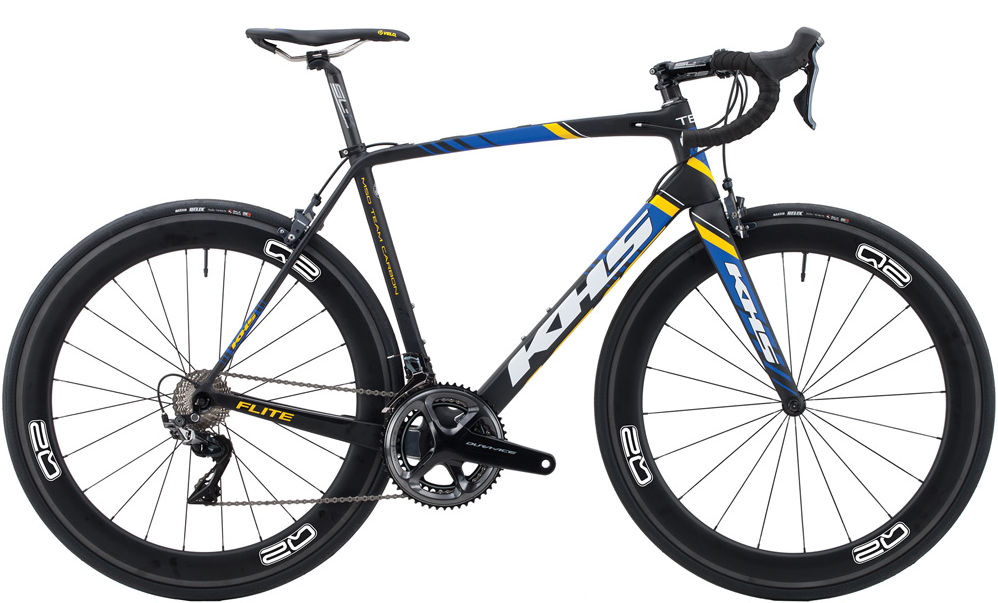

2018 KHS Flite Carbon geometry
Full frame geometry for the 2018 KHS Flite Carbon, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|---|
| XS | 515 | 361 | 74 | 70.5 | 115 | 509 | 450 | 728 | 405 |
| S | 540 | 370 | 74 | 71.5 | 140 | 526 | 485 | 761 | 405 |
| M | 559 | 380 | 73.5 | 72.5 | 155 | 545 | 510 | 783 | 410 |
| ML | 578 | 388 | 73 | 72.5 | 175 | 565 | 525 | 800 | 410 |
| L | 599 | 397 | 73 | 72.5 | 200 | 580 | 545 | 822 | 410 |
| XL | 623 | 407 | 72.5 | 72.5 | 225 | 603 | 580 | 850 | 415 |
All measurements in millimetres unless marked (°) for angles.
