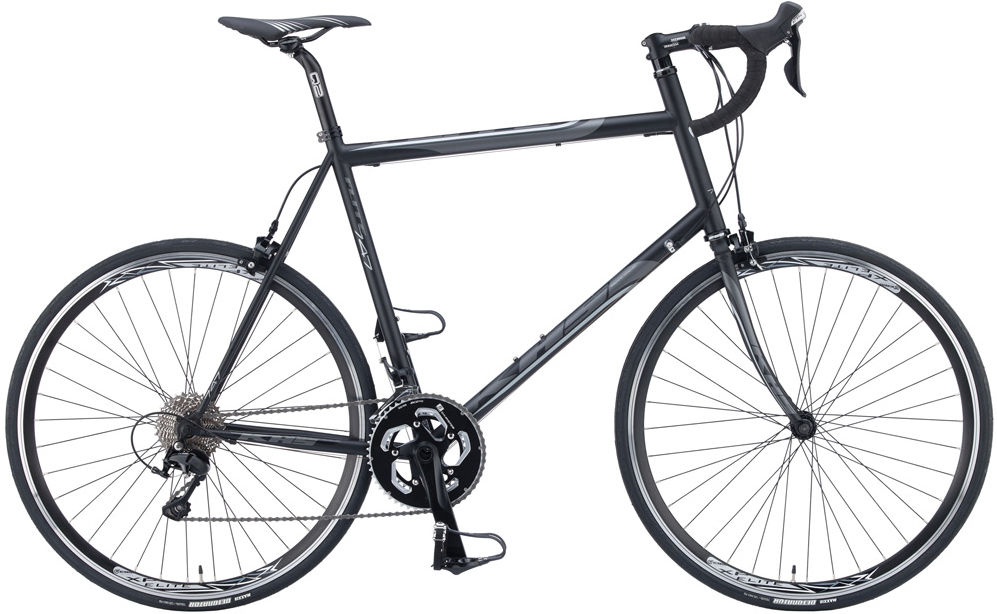

2018 KHS Flite 747 geometry
Full frame geometry for the 2018 KHS Flite 747, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|---|
| XXL | 635 | 430 | 73.5 | 72 | 248 | 620 | 568 | 833 | 430 |
| XXXL | 676 | 433 | 73.5 | 72 | 292 | 635 | 607 | 874 | 430 |
All measurements in millimetres unless marked (°) for angles.
