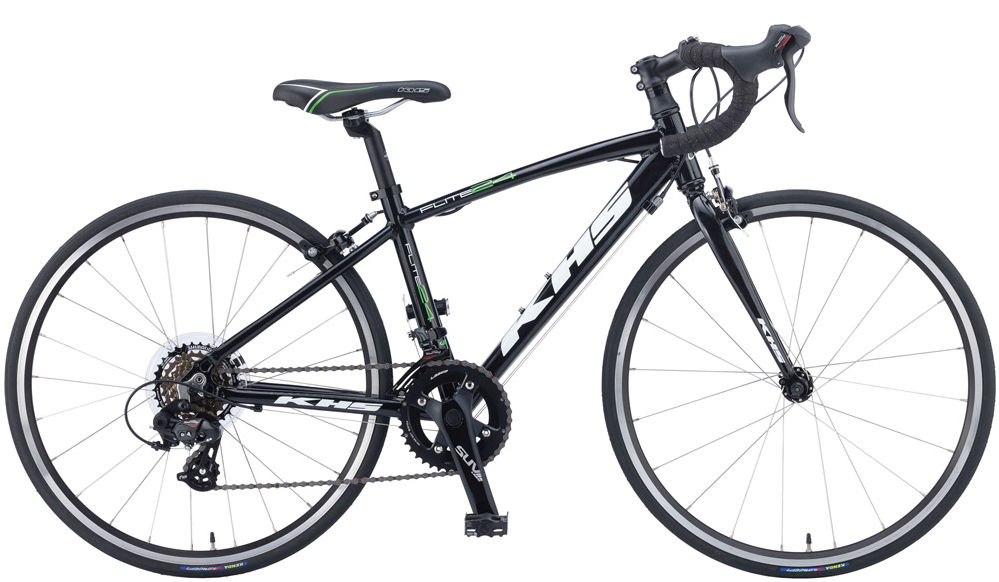

2018 KHS Flite 24 geometry
Full frame geometry for the 2018 KHS Flite 24, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|---|
| 24 | 434 | 317 | 74 | 71 | 100 | 441 | 345 | 613 | 380 |
All measurements in millimetres unless marked (°) for angles.
