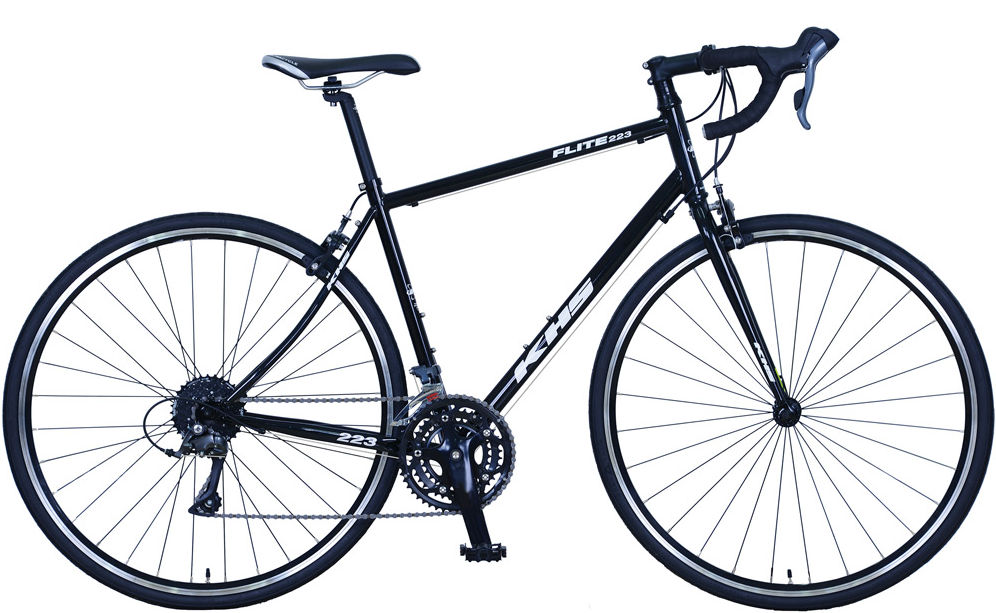

2018 KHS Flite 223 geometry
Full frame geometry for the 2018 KHS Flite 223, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|---|
| XS | 551 | 356 | 74.5 | 71 | 115 | 510 | 430 | 727 | 430 |
| S | 564 | 362 | 74 | 71.5 | 130 | 525 | 465 | 753 | 430 |
| M | 594 | 373 | 73 | 72.5 | 155 | 555 | 490 | 778 | 430 |
| L | 620 | 385 | 73 | 72.5 | 185 | 575 | 520 | 809 | 430 |
| XL | 644 | 393 | 72.5 | 72.5 | 210 | 596 | 550 | 835 | 430 |
All measurements in millimetres unless marked (°) for angles.
