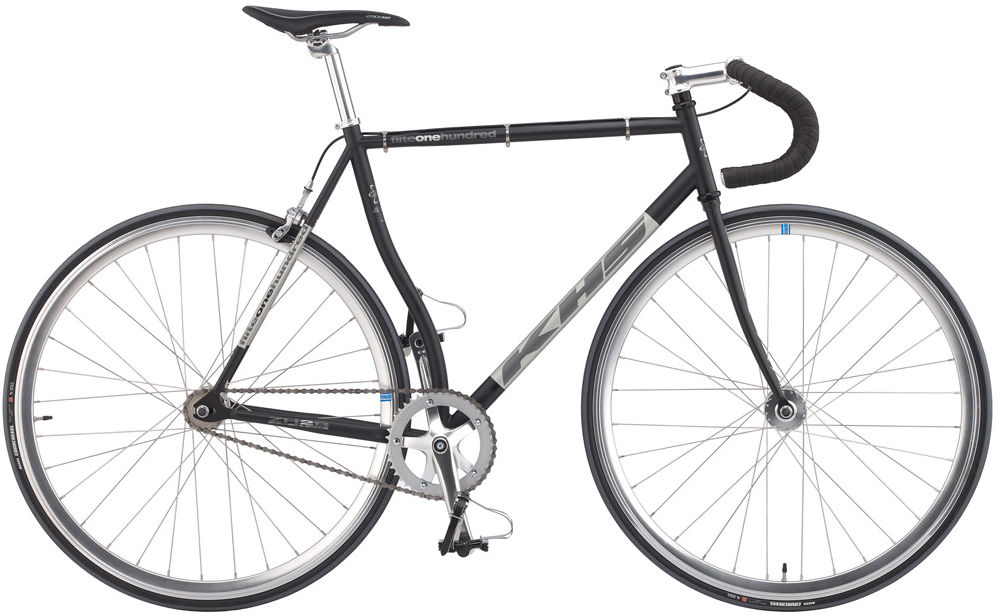

2018 KHS Flite 100 geometry
Full frame geometry for the 2018 KHS Flite 100, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|---|
| S | 511 | 396 | 74 | 74 | 102 | 543 | 510 | 746 | 387 |
| M | 528 | 397 | 74 | 74 | 120 | 549 | 530 | 783 | 387 |
| ML | 550 | 400 | 74 | 74 | 143 | 558 | 550 | 803 | 387 |
| L | 557 | 410 | 74 | 74 | 150 | 570 | 570 | 817 | 387 |
| XL | 564 | 418 | 74 | 74 | 157 | 580 | 600 | 830 | 387 |
All measurements in millimetres unless marked (°) for angles.
