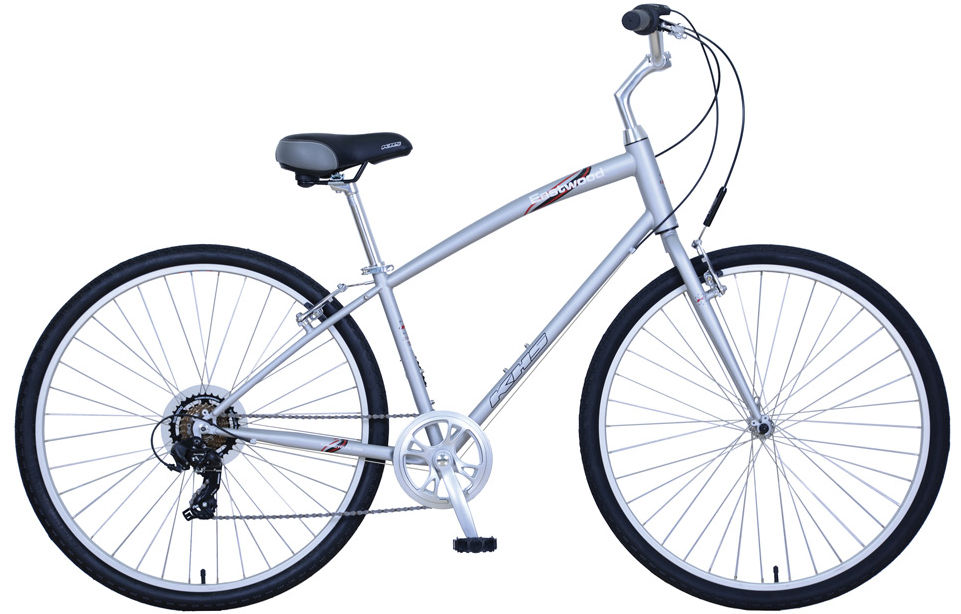

2018 KHS Eastwood geometry
Full frame geometry for the 2018 KHS Eastwood, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|---|
| S | 603 | 372 | 71 | 70.5 | 167 | 580 | 350 | 745 | 465 |
| S-Low | 610 | 365 | 71 | 70.5 | 175 | 575 | 325 | — | 465 |
| M | 614 | 381 | 71 | 70.5 | 190 | 590 | 400 | 774 | 465 |
| L | 625 | 389 | 71 | 70.5 | 191 | 604 | 450 | 806 | 465 |
| ML | 625 | 375 | 71 | 70.5 | 190 | 590 | 400 | — | 465 |
| XL | 637 | 397 | 71 | 70.5 | 203 | 616 | 500 | 839 | 465 |
| XXL | 648 | 405 | 71 | 70.5 | 215 | 628 | 550 | 865 | 465 |
| XXXL | 660 | 414 | 71 | 70.5 | 225 | 641 | 600 | 894 | 465 |
All measurements in millimetres unless marked (°) for angles.
