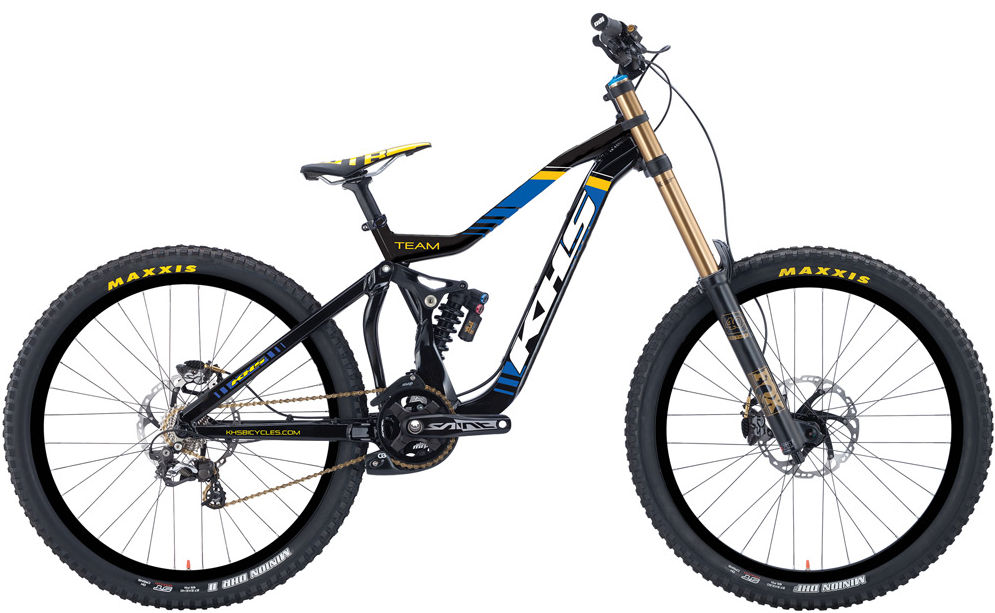

2018 KHS DH 650 geometry
Full frame geometry for the 2018 KHS DH 650, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|---|
| L | 603 | 428 | 74 | 64 | 110 | 601 | 405 | 743 | 455 |
| M | 603 | 403 | 74 | 64 | 110 | 576 | 393 | 747 | 455 |
| S | 603 | 378 | 74 | 64 | 110 | 551 | 380 | 755 | 455 |
All measurements in millimetres unless marked (°) for angles.
