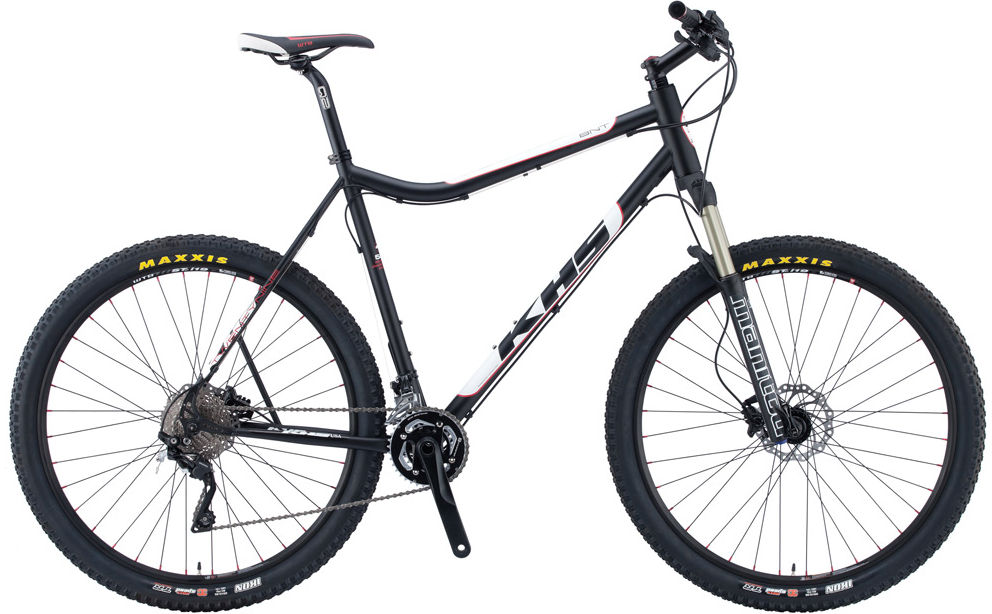

2018 KHS BNT 29 geometry
Full frame geometry for the 2018 KHS BNT 29, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|---|
| XXL | 658 | 450 | 73 | 71 | 141 | 653 | 586 | 931 | 455 |
| XXXL | 681 | 468 | 73 | 71 | 166 | 678 | 626 | 962 | 455 |
All measurements in millimetres unless marked (°) for angles.
