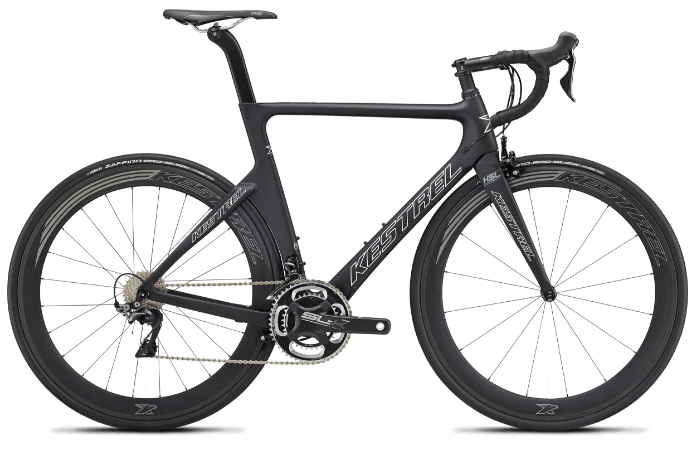

2018 Kestrel Talon X geometry
Full frame geometry for the 2018 Kestrel Talon X, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 507 | 378 | 75.7 | 72.4 | 103 | 510 | 760 | 69 | 410 | 975 | 52 | 54 |
| S | 520 | 391 | 74.5 | 73 | 115 | 533 | 780 | 68 | 410 | 986 | 52 | 50 |
| M | 548 | 395 | 74 | 73.2 | 142 | 555 | 808 | 68 | 410 | 989 | 43 | 59 |
| L | 568 | 395 | 73 | 73.5 | 162 | 570 | 830 | 68 | 410 | 993 | 43 | 57 |
| XL | 593 | 409 | 72.5 | 74 | 189 | 595 | 850 | 68 | 410 | 1012 | 43 | 54 |
All measurements in millimetres unless marked (°) for angles.
