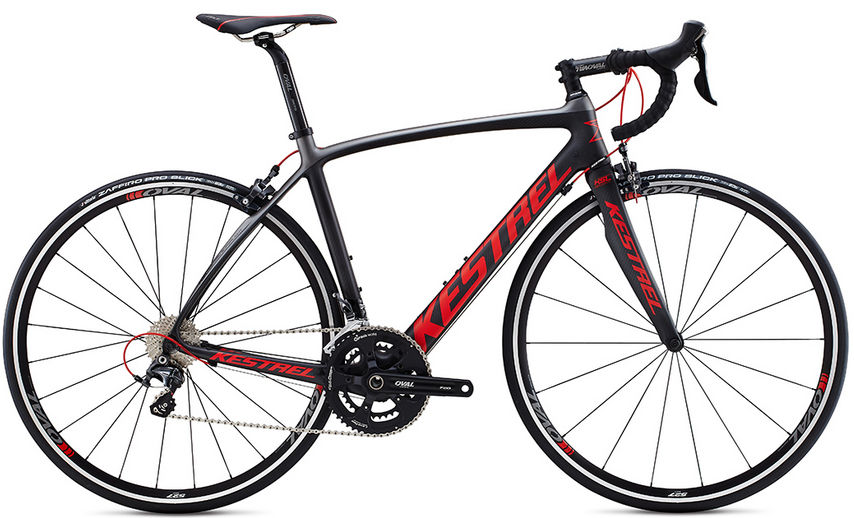

2014 Kestrel Legend geometry
Full frame geometry for the 2014 Kestrel Legend, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 48 | 491 | 375 | 75.2 | 72.2 | 85 | 510 | 74 | 569 | 405 | 963 | 48 | 58 |
| 51 | 512 | 384 | 74.8 | 72.5 | 107 | 525 | 74 | 579 | 405 | 972 | 48 | 56 |
| 53 | 531 | 392 | 74.2 | 73 | 123 | 542 | 74 | 582 | 405 | 975 | 43 | 58 |
| 55 | 549 | 395 | 73.5 | 73.2 | 140 | 556 | 74 | 586 | 405 | 979 | 43 | 57 |
| 57 | 565 | 398 | 73 | 73.2 | 160 | 570 | 71 | 595 | 405 | 989 | 43 | 57 |
| 59 | 583 | 405 | 72.8 | 73.2 | 179 | 586 | 71 | 608 | 410 | 1007 | 43 | 57 |
| 62 | 589 | 419 | 72.5 | 73.2 | 189 | 605 | 68 | 625 | 410 | 1026 | 43 | 57 |
All measurements in millimetres unless marked (°) for angles.
