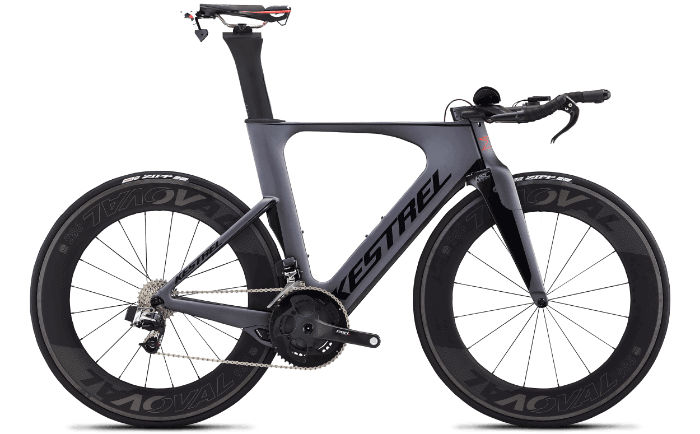

2018 Kestrel 5000 SL geometry

Name: 2018 Kestrel 5000 SL
Brand: Kestrel

Full frame geometry for the 2018 Kestrel 5000 SL, size by size — stack, reach, angles and tube lengths.

Does this bike fit you? Get sized in minutes — no tape measure, no appointment.

Geometry by size

Size	Stack (mm)	Reach (mm)	Seat angle (°)	Head angle (°)	Head tube (mm)	Top tube (mm)	Standover (mm)	BB drop (mm)	Chainstay (mm)	Wheelbase (mm)	Fork rake (mm)	Trail (mm)
XS	499	365	77	70.3	100	480	749	72	395	954	45	58
S	518	386	77	71.5	115	505	763	72	395	970	45	55
M	543	405	77	72	140	530	777	72	395	993	45	53
L	568	429	77	72.5	165	560	793	72	395	1021	45	53
XL	571	456	77	73.5	181	586	798	72	395	—	45	52

All measurements in millimetres unless marked (°) for angles.
