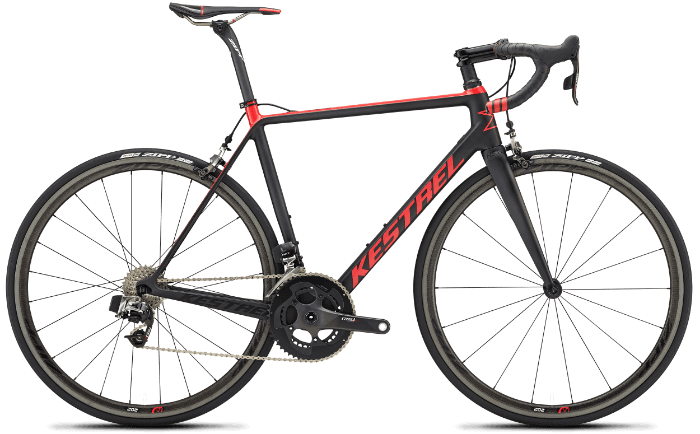

2018 Kestrel Legend SL geometry
Full frame geometry for the 2018 Kestrel Legend SL, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 518 | 377 | 74.5 | 71.5 | 120 | 520 | 708 | 69 | 405 | 973 | 45 | 58 |
| S | 537 | 381 | 73.5 | 72.5 | 135 | 540 | 729 | 69 | 405 | 975 | 45 | 56 |
| M | 551 | 392 | 73.5 | 73 | 150 | 555 | 749 | 69 | 405 | 985 | 45 | 58 |
| L | 571 | 396 | 73 | 73 | 170 | 570 | 789 | 69 | 405 | 995 | 45 | 57 |
| XL | 591 | 404 | 72.5 | 73.5 | 190 | 590 | 806 | 69 | 405 | 1004 | 45 | 57 |
All measurements in millimetres unless marked (°) for angles.
