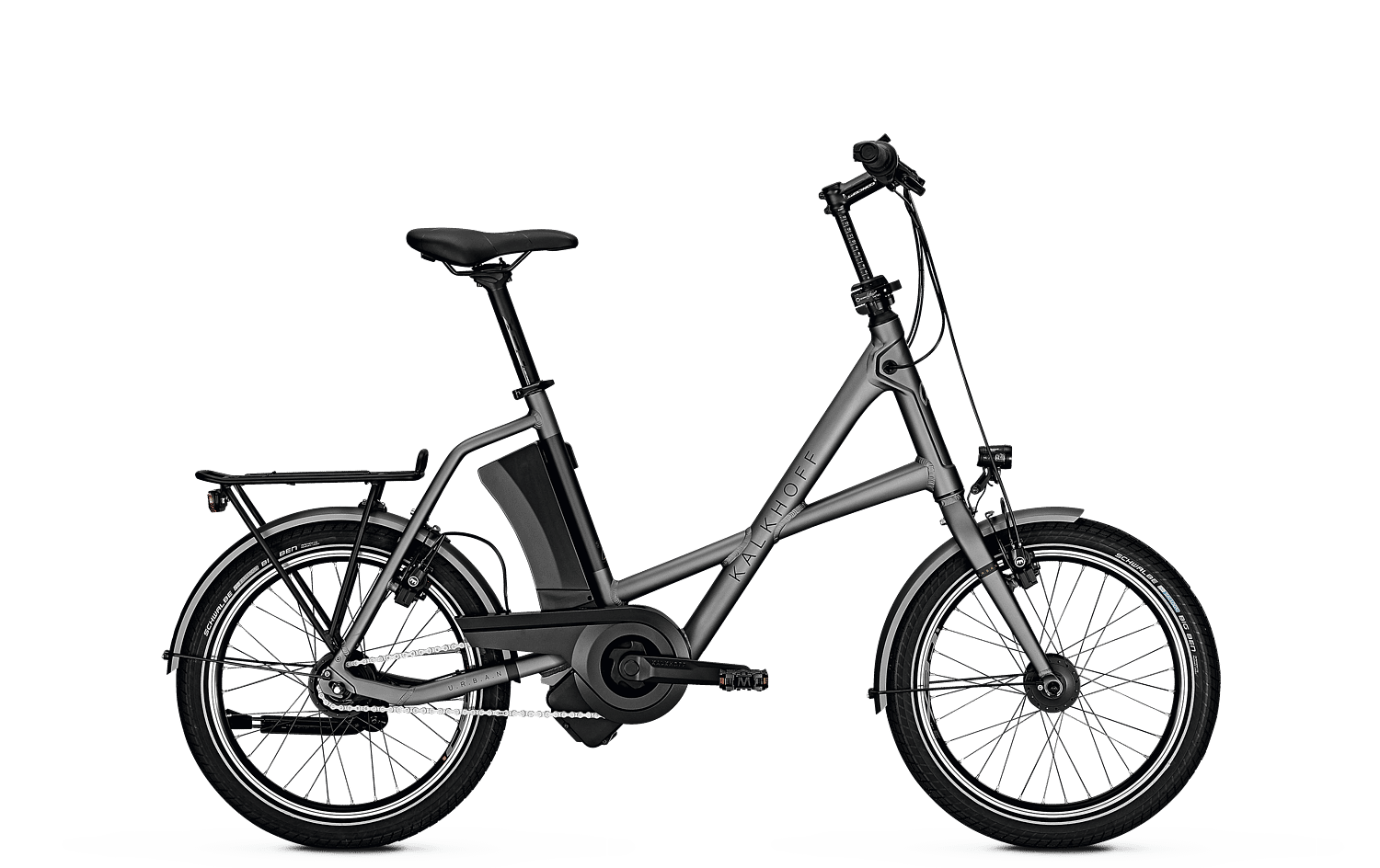

2018 Kalkhoff Sahel Compact I8 geometry
Full frame geometry for the 2018 Kalkhoff Sahel Compact I8, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| S | 531 | 392 | 70.5 | 69.5 | 280 | 580 | 460 | 32 | 450 | 1099 |
All measurements in millimetres unless marked (°) for angles.
