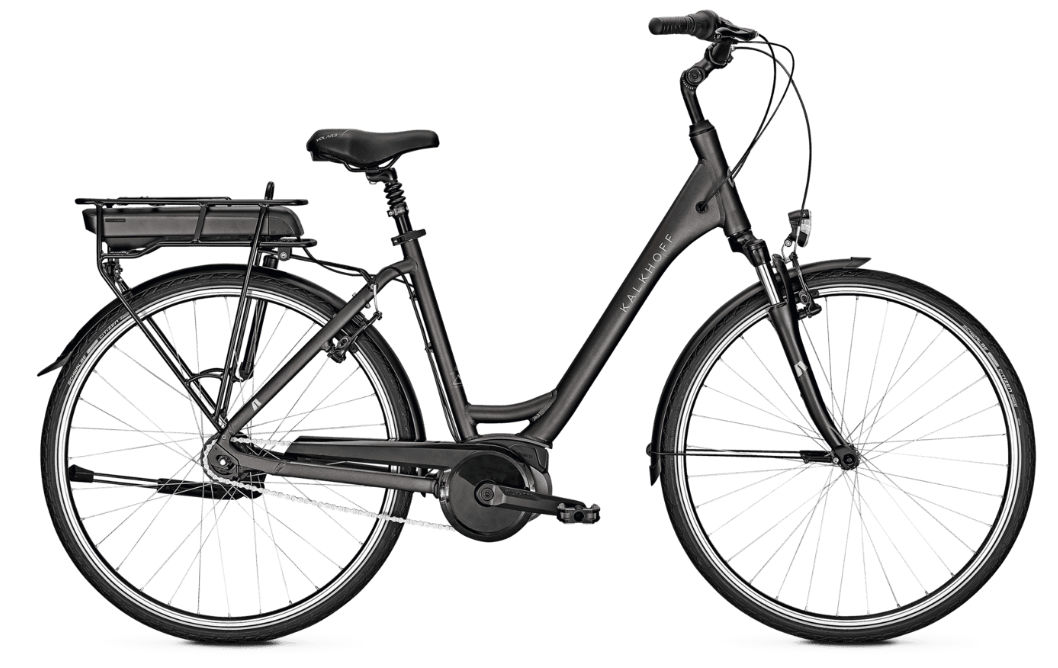

2019 Kalkhoff Agattu 1.B geometry
Full frame geometry for the 2019 Kalkhoff Agattu 1.B, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 623 | 404 | 73 | 72 | 185 | 595 | 450 | 40 | 642 | 465 | 1104 | 45 |
| S | 662 | 391 | 72.5 | 70.5 | 185 | 600 | 450 | 60 | 654 | 485 | 1133 | 45 |
| L | 671 | 418 | 72.5 | 70.5 | 195 | 630 | 550 | 60 | 684 | 485 | 1163 | 45 |
| M | 671 | 403 | 72.5 | 70.5 | 195 | 615 | 500 | 60 | 670 | 485 | 1149 | 45 |
All measurements in millimetres unless marked (°) for angles.
