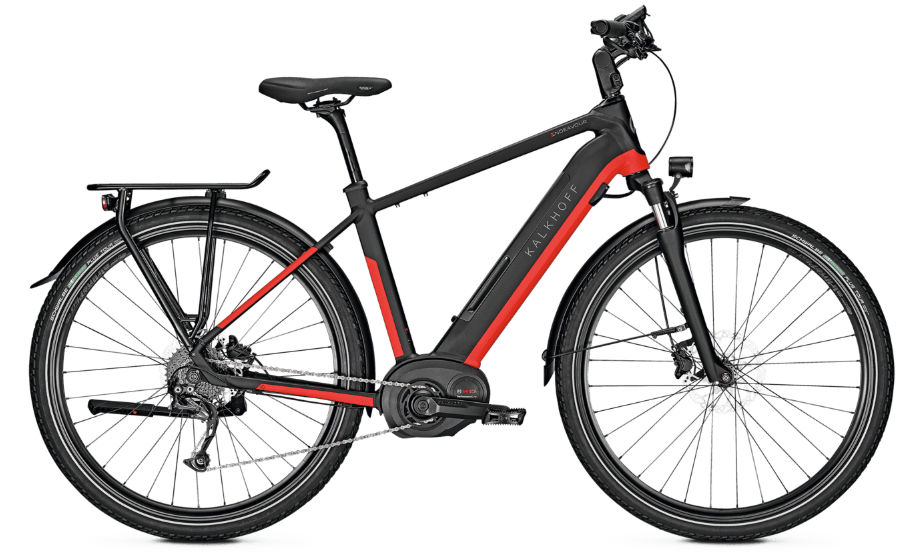

2019 Kalkhoff Endeavour 5 B geometry
Full frame geometry for the 2019 Kalkhoff Endeavour 5 B, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 648 | 390 | 73 | 72 | 160 | 588 | 430 | 65 | 485 | 1108 | 45 |
| M | 658 | 396 | 73 | 72 | 170 | 597 | 480 | 65 | 485 | 1117 | 45 |
| L | 667 | 402 | 73 | 72 | 180 | 606 | 530 | 65 | 485 | 1126 | 45 |
| XL | 677 | 408 | 73 | 72 | 190 | 615 | 580 | 65 | 485 | 1126 | 45 |
All measurements in millimetres unless marked (°) for angles.
