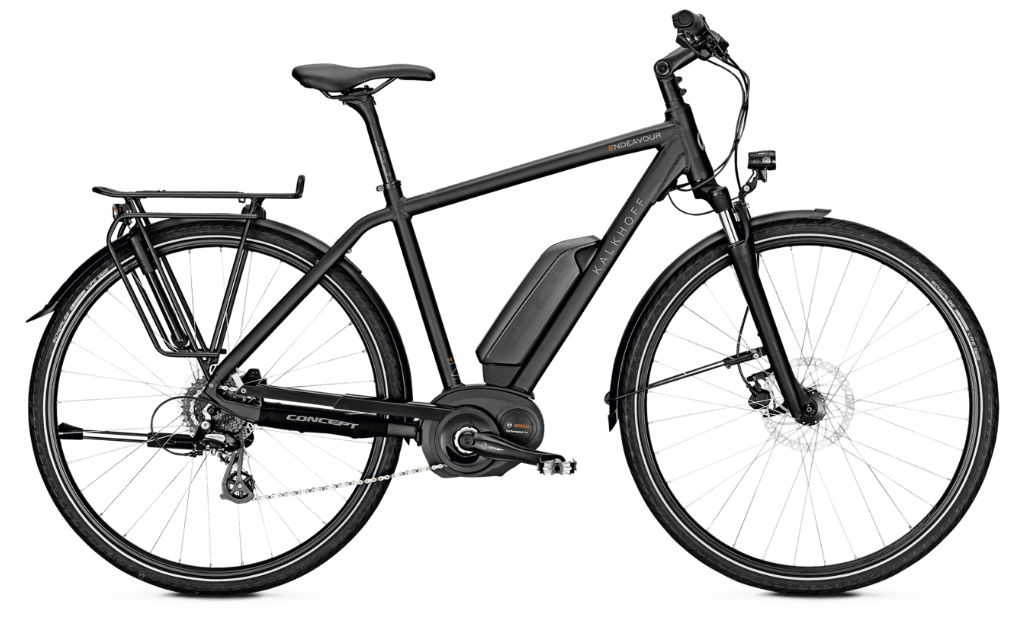

2019 Kalkhoff Endeavour 1.B Herren geometry
Full frame geometry for the 2019 Kalkhoff Endeavour 1.B Herren, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| L | 638 | 400 | 73 | 71.5 | 170 | 595 | 550 | 886 | 55 | 651 | 475 | 1120 | 55 |
| S | 662 | 391 | 72.5 | 70.5 | 185 | 600 | 450 | 841 | 60 | 655 | 475 | 1123 | 45 |
| M | 671 | 403 | 72.5 | 70.5 | 195 | 615 | 500 | 872 | 60 | 670 | 475 | 1139 | 45 |
| XL | 685 | 394 | 72.5 | 71.5 | 220 | 610 | 600 | 936 | 55 | 659 | 475 | 1129 | 55 |
All measurements in millimetres unless marked (°) for angles.
