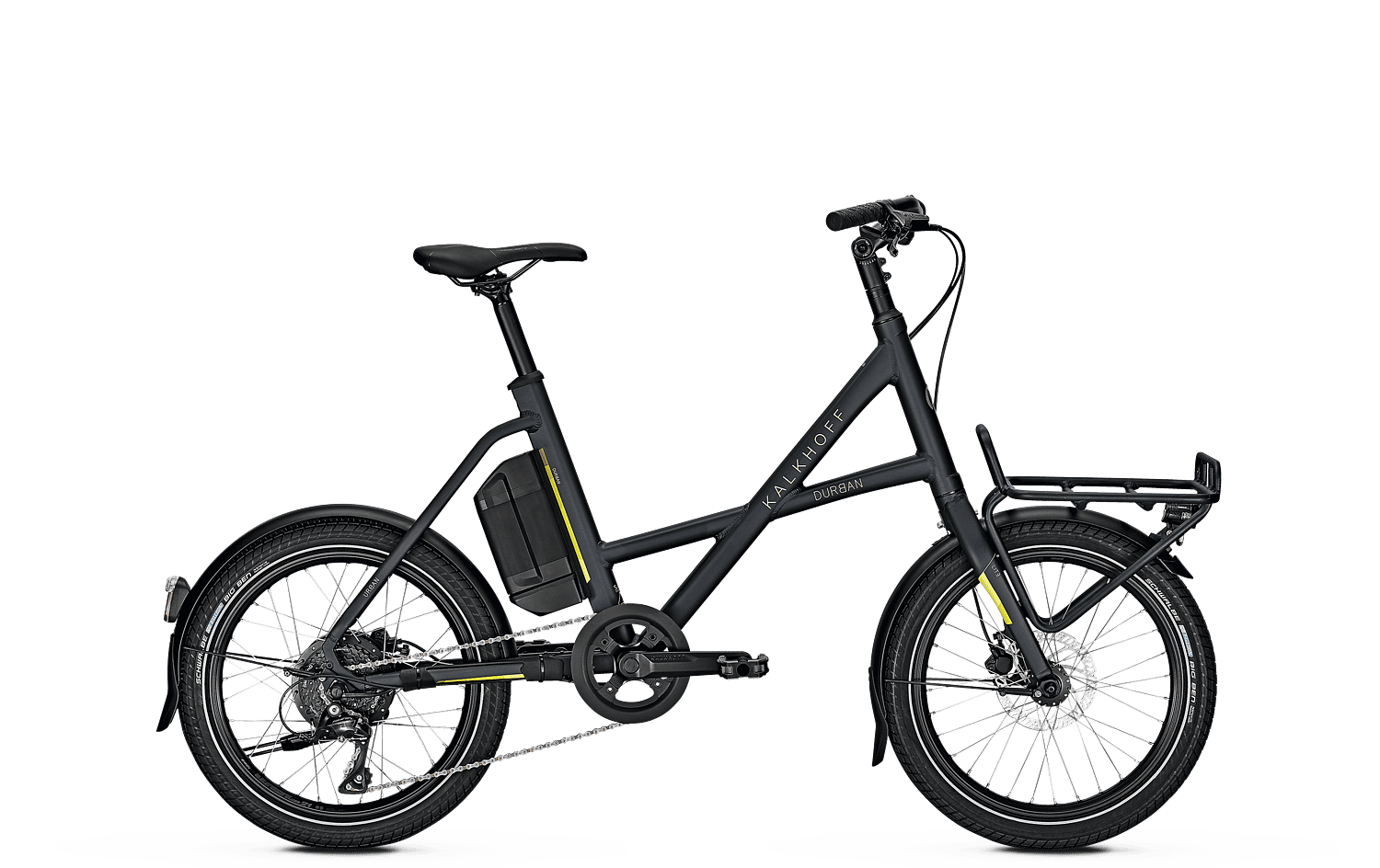

2018 Kalkhoff Durban Compact geometry
Full frame geometry for the 2018 Kalkhoff Durban Compact, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 529 | 393 | 70.5 | 70 | 280 | 580 | 470 | 32 | 450 | 1094 | 45 |
All measurements in millimetres unless marked (°) for angles.
