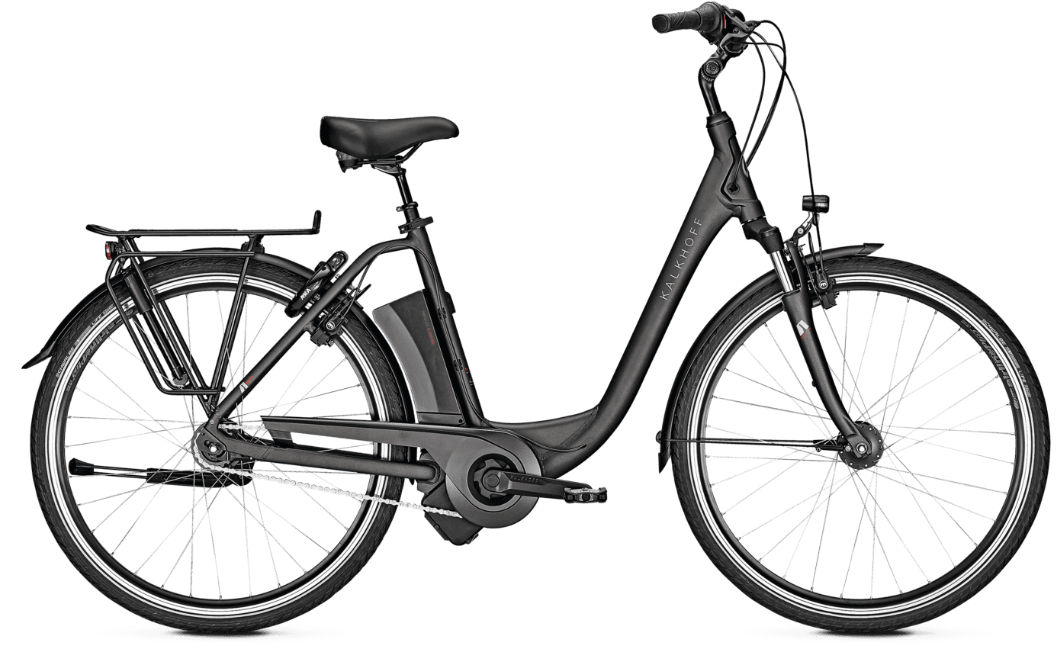

2019 Kalkhoff Agattu 1.I geometry
Full frame geometry for the 2019 Kalkhoff Agattu 1.I, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 590 | 430 | 73 | 70.5 | 150 | 610 | 450 | 40 | 673 | 495 | 1165 | 45 |
| M | 662 | 421 | 72.5 | 70.5 | 185 | 630 | 500 | 60 | 684 | 520 | 1198 | 45 |
| S | 662 | 401 | 72.5 | 70.5 | 185 | 610 | 460 | 60 | 664 | 520 | 1178 | 45 |
| L | 671 | 438 | 72.5 | 70.5 | 195 | 650 | 550 | 60 | 784 | 520 | 1298 | 45 |
All measurements in millimetres unless marked (°) for angles.
