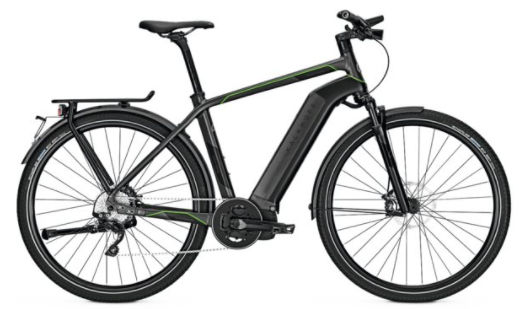

2017 Kalkhoff Integrale Speed i10 geometry

Name: 2017 Kalkhoff Integrale Speed i10
Brand: Kalkhoff

Full frame geometry for the 2017 Kalkhoff Integrale Speed i10, size by size — stack, reach, angles and tube lengths.

Does this bike fit you? Get sized in minutes — no tape measure, no appointment.

Geometry by size

Size	Stack (mm)	Reach (mm)	Seat angle (°)	Head angle (°)	Head tube (mm)	Top tube (mm)	Seat tube (mm)	Standover (mm)	BB drop (mm)	Chainstay (mm)	Wheelbase (mm)	Fork rake (mm)
S-Diamant	616	409	74	71.5	145	586	475	835	55	468	1109	45
S-Trapez	626	409	74	71.5	155	589	450	776	55	468	1112	45
M-Diamant	628	405	73	71.5	158	597	500	842	55	468	1109	45
M-Trapez	638	405	73	71.5	168	600	500	795	55	468	1112	45
L-Diamant	640	402	72	71.5	170	609	550	873	55	468	1109	45
XL-Diamant	652	397	71	71.5	182	621	600	885	55	468	1109	45

All measurements in millimetres unless marked (°) for angles.
