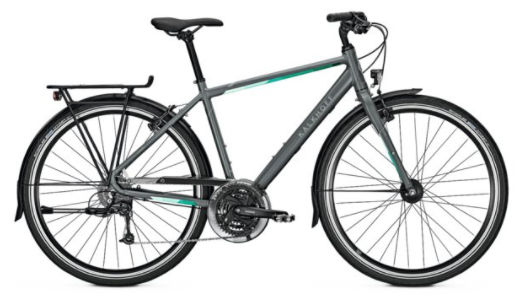

2017 Kalkhoff Durban 27 geometry

Name: 2017 Kalkhoff Durban 27
Brand: Kalkhoff

Full frame geometry for the 2017 Kalkhoff Durban 27, size by size — stack, reach, angles and tube lengths.

Does this bike fit you? Get sized in minutes — no tape measure, no appointment.

Geometry by size

Size	Stack (mm)	Reach (mm)	Seat angle (°)	Head angle (°)	Head tube (mm)	Top tube (mm)	Seat tube (mm)	Standover (mm)	BB drop (mm)	Chainstay (mm)	Wheelbase (mm)	Fork rake (mm)
S-Trapez	580	404	74	71	150	570	450	713	60	465	1092	45
M-Diamant	582	408	73.5	71.5	150	580	500	807	60	465	1091	45
M-Trapez	582	408	73.5	71.5	150	580	500	713	60	465	1091	45
L-Diamant	606	410	73	71.5	180	595	550	840	55	465	1103	45
L-Trapez	606	410	73	71.5	180	595	550	726	55	465	1103	45
XL-Diamant	644	407	72.5	71.5	220	610	600	883	55	465	1113	45

All measurements in millimetres unless marked (°) for angles.
