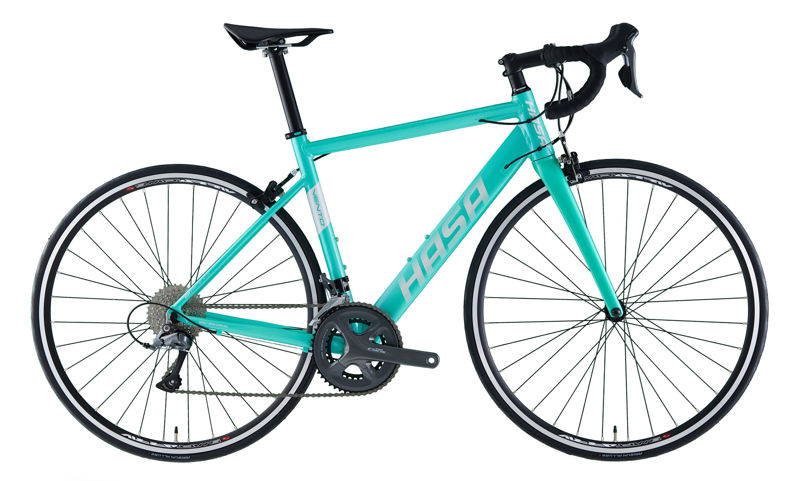

2022 Hasa Vento geometry
Full frame geometry for the 2022 Hasa Vento, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 548 | 362 | 74.5 | 70 | 130 | 505 | 440 | 75 | 579 | 410 | 979 | 45 |
| XXS | 548 | 353 | 74.5 | 70 | 130 | 505 | 410 | 75 | 579.2 | 410 | 978.9 | 45 |
| S | 571 | 357 | 74.5 | 71 | 150 | 515 | 470 | 70 | 581 | 410 | 978.9 | 45 |
| M | 571.1 | 361 | 74 | 71 | 150 | 525 | 500 | 70 | 585 | 410 | 985 | 45 |
| XL | 574.8 | 374.7 | 73 | 74 | 160 | 575 | 560 | 70 | 595 | 410 | 995 | 45 |
| L | 575 | 375 | 73.5 | 72 | 150 | 545 | 530 | 70 | 590 | 410 | 990 | 45 |
All measurements in millimetres unless marked (°) for angles.
