2025 Hasa · RD

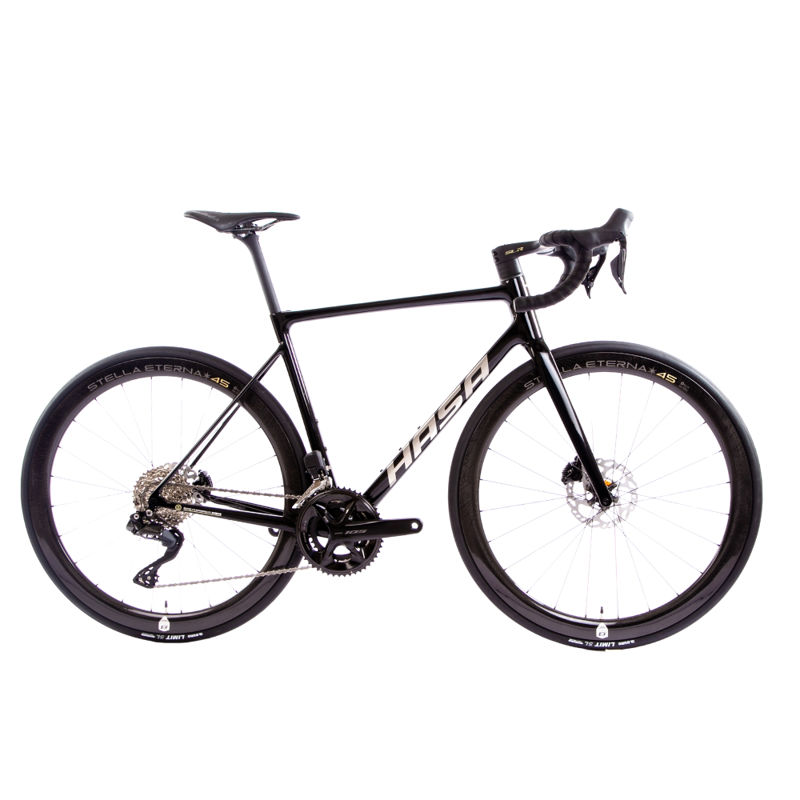

2025 Hasa Deroma geometry
Full frame geometry for the 2025 Hasa Deroma, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 505 | 368 | 75 | 71.5 | 100 | 503 | 471 | 737 | 74 | 569 | 410 | 968 | 61 |
| S | 527 | 378 | 74.5 | 72.5 | 120 | 524 | 486 | 754 | 74 | 578 | 410 | 977 | 55 |
| M | 548 | 384 | 74 | 73 | 140 | 540 | 503 | 775 | 70 | 581 | 410 | 980 | 57 |
| L | 565 | 388 | 73.5 | 73 | 160 | 555 | 522 | 794 | 70 | 590 | 410 | 990 | 57 |
| XL | 584 | 397 | 73 | 73 | 180 | 576 | 533 | 807 | 70 | 605 | 410 | 1005 | 57 |
All measurements in millimetres unless marked (°) for angles.
