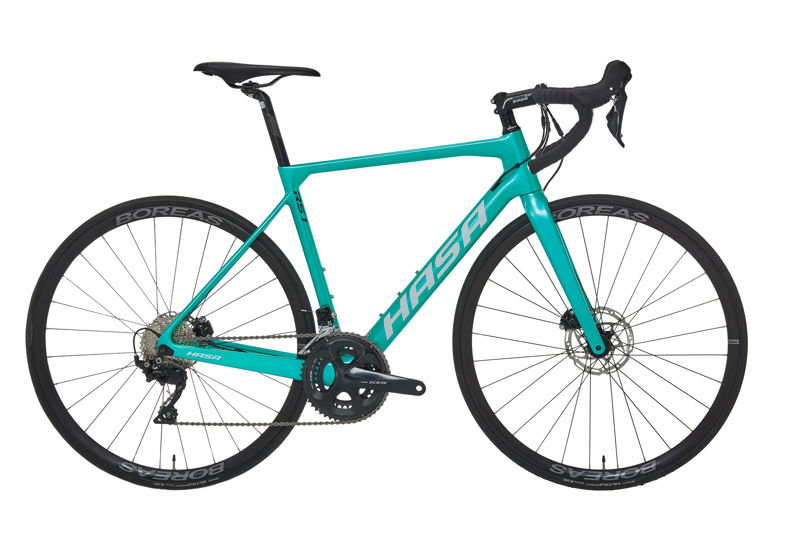

2023 Hasa RS1 geometry
Full frame geometry for the 2023 Hasa RS1, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 504 | 365.4 | 74.5 | 70.5 | 100 | 505.1 | 433 | 75 | 570 | 415 | 973.1 | 45 |
| S | 529.7 | 378.4 | 74 | 72.5 | 120 | 530.3 | 471 | 75 | 574 | 415 | 977.2 | 45 |
| M | 545.5 | 383.7 | 73.5 | 73 | 140 | 545.2 | 503 | 70 | 580.3 | 415 | 985.2 | 45 |
| L | 564.6 | 387.8 | 73 | 73 | 160 | 560.4 | 523 | 70 | 590.3 | 415 | 995.1 | 45 |
| XL | 583.8 | 397 | 73 | 73 | 180 | 575.4 | 542 | 70 | 605 | 415 | 1010.2 | 45 |
All measurements in millimetres unless marked (°) for angles.
