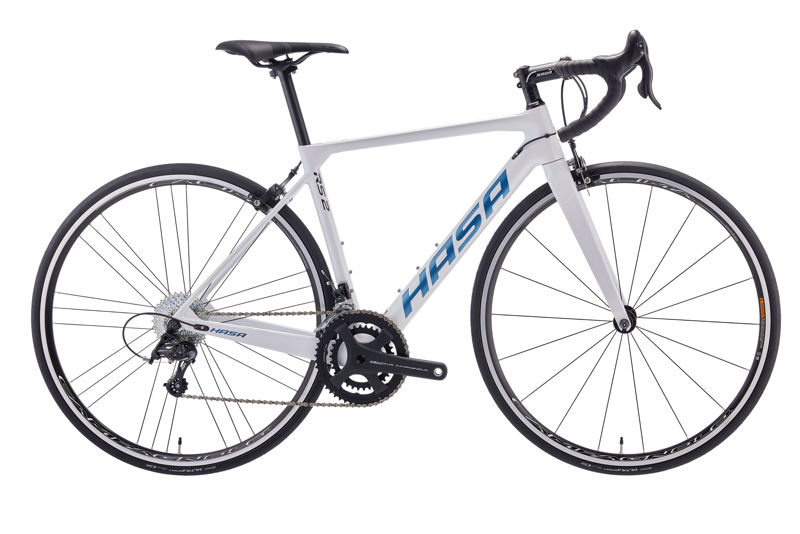

2021 Hasa RS 2 geometry
Full frame geometry for the 2021 Hasa RS 2, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 508.7 | 363.7 | 75 | 70.5 | 105 | 500 | 430 | 75 | 570 | 405 | 963 | 45 |
| S | 529.7 | 378.1 | 74.5 | 72.5 | 120 | 525 | 470 | 75 | 573.6 | 405 | 966.6 | 45 |
| M | 545.5 | 383.7 | 74.5 | 73 | 140 | 535 | 490 | 70 | 580.3 | 405 | 975 | 45 |
| L | 564.6 | 388.1 | 74 | 73 | 160 | 550 | 510 | 70 | 590.5 | 405 | 985.3 | 45 |
| XL | 584.3 | 396.9 | 73 | 73 | 180 | 575.5 | 537 | 70 | 604.8 | 405 | 1000 | 45 |
All measurements in millimetres unless marked (°) for angles.
