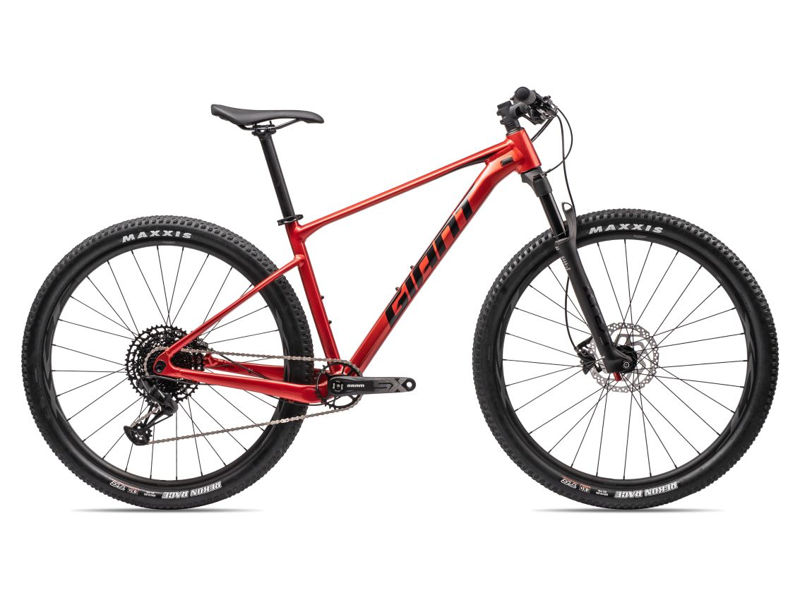

2023 Giant XTC SLR geometry
Full frame geometry for the 2023 Giant XTC SLR, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M | 607 | 440 | 74 | 69.5 | 95 | 614 | 431 | 757 | 58 | 440 | 1136 | 51 | 94.9 |
| S | 607 | 421 | 74 | 69.5 | 95 | 595 | 380 | 727 | 58 | 440 | 1117 | 51 | 94.9 |
| L | 618 | 458 | 74 | 70 | 105 | 635 | 475 | 785 | 58 | 440 | 1152 | 51 | 94.9 |
| XL | 628 | 485 | 74 | 70 | 115 | 665 | 525 | 818 | 58 | 440 | 1183 | 51 | 94.9 |
All measurements in millimetres unless marked (°) for angles.
