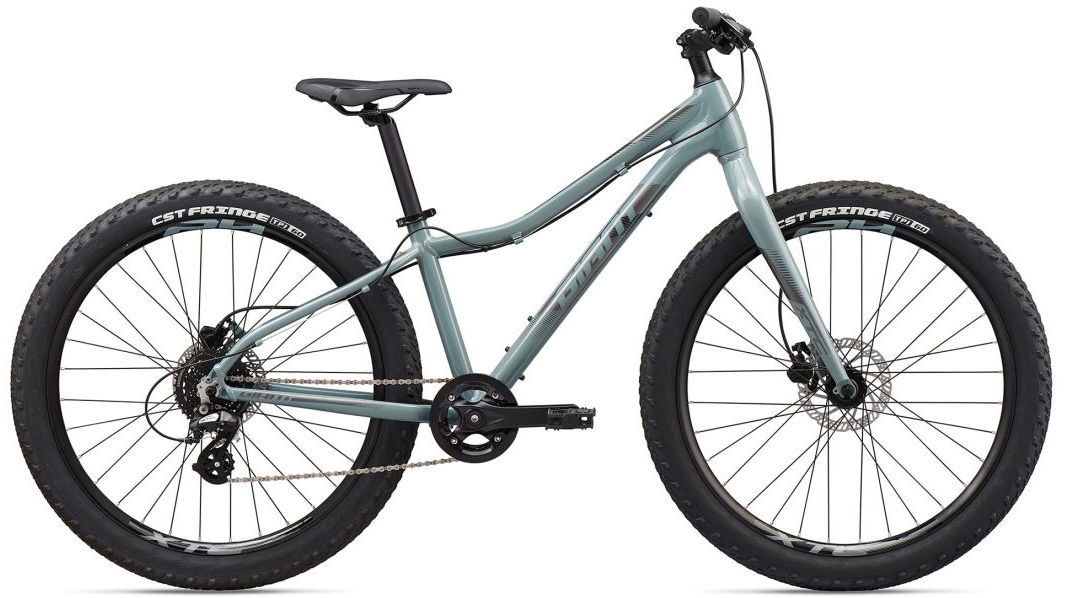

2019 Giant XTC Jr 26 Plus geometry
Full frame geometry for the 2019 Giant XTC Jr 26 Plus, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 552 | 391 | 73 | 69 | 120 | 560 | 350 | 629 | 45 | 636 | 425 | 1057 | 45 | 83 |
All measurements in millimetres unless marked (°) for angles.
