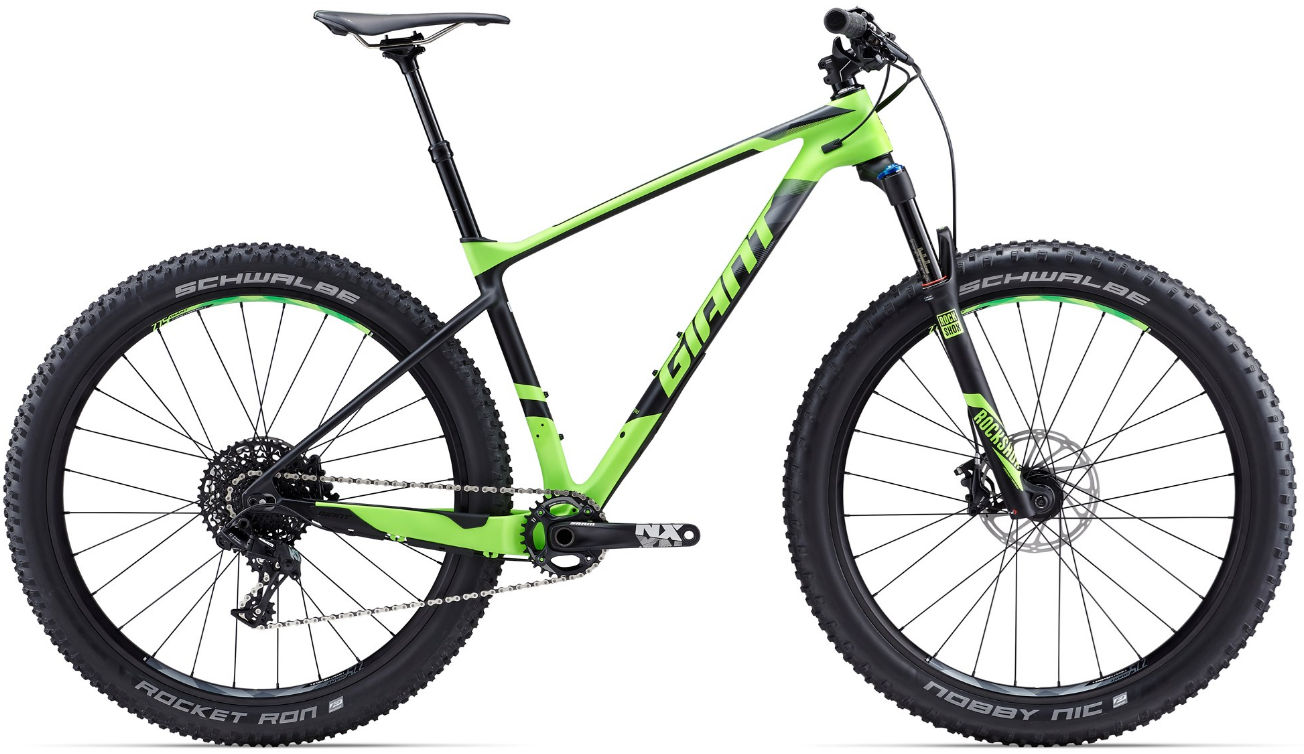

2017 Giant XTC Advanced + MKI geometry
Full frame geometry for the 2017 Giant XTC Advanced + MKI, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|
| M/18 | 618 | 403 | 71.5 | 69 | 95 | 608 | 765 | 433 | 1108 |
| S/16 | 618 | 388 | 72 | 69 | 95 | 588 | 739 | 433 | 1093 |
| L/20 | 628 | 414 | 71 | 69 | 105 | 628 | 795 | 433 | 1119 |
| XL/22 | 637 | 431 | 71 | 69 | 115 | 648 | 826 | 433 | 1136 |
All measurements in millimetres unless marked (°) for angles.
