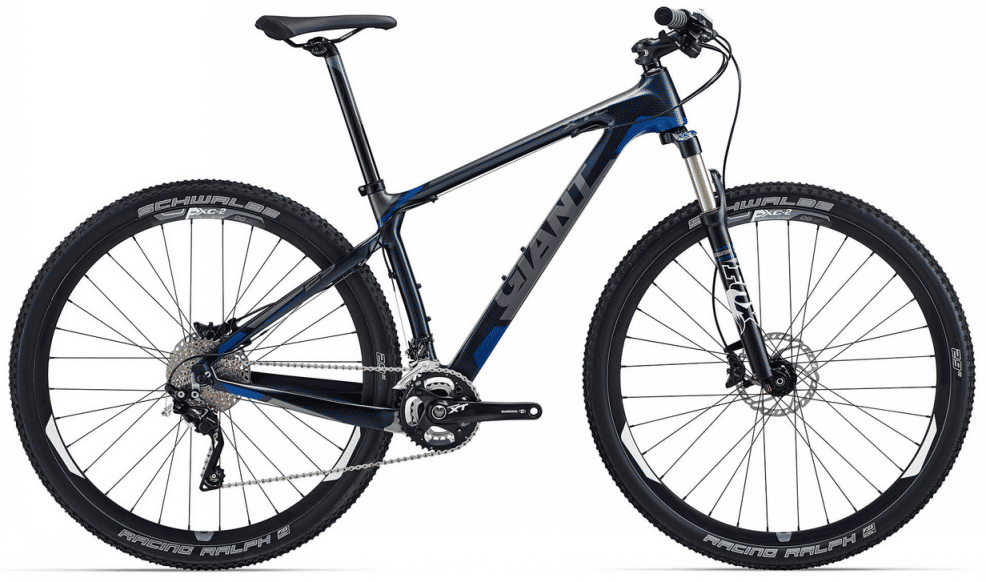

2015 Giant XTC Advanced 29 MKI geometry
Full frame geometry for the 2015 Giant XTC Advanced 29 MKI, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| S/16 | 631 | 381 | 73 | 71 | 104 | 574 | 724 | 53 | 439 | 1062 |
| M/18 | 633 | 394 | 72.5 | 71.5 | 104 | 594 | 752 | 53 | 439 | 1069 |
| L/20 | 638 | 408 | 72 | 71.5 | 109 | 615 | 775 | 53 | 439 | 1085 |
| XL/22 | 647 | 425 | 72 | 71.5 | 119 | 635 | 803 | 53 | 439 | 1105 |
All measurements in millimetres unless marked (°) for angles.
