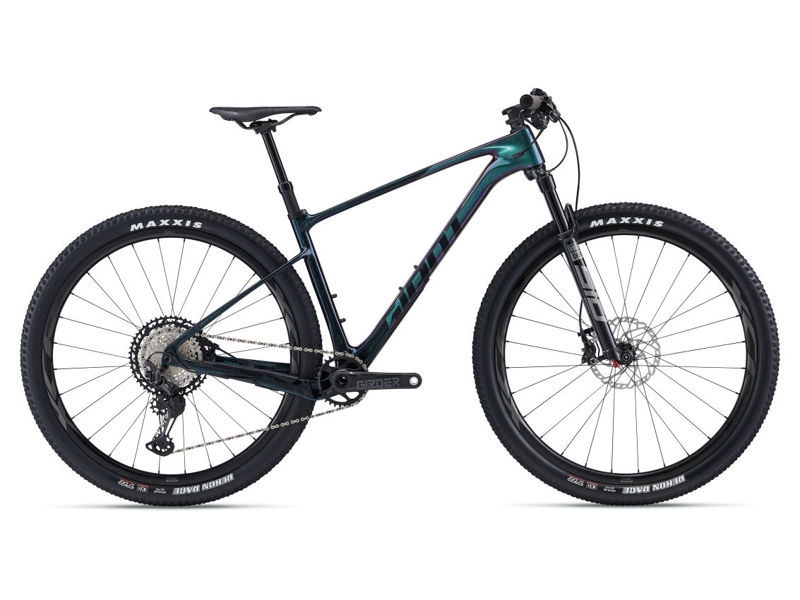

2023 Giant XTC Advance geometry
Full frame geometry for the 2023 Giant XTC Advance, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M | 604 | 435 | 73.5 | 69.5 | 95 | 614 | 431 | 764 | 58 | 425 | 1106 | 43 | 94.9 |
| S | 604 | 416 | 73.5 | 69.5 | 95 | 595 | 380 | 737 | 58 | 425 | 1087 | 43 | 94.9 |
| L | 613 | 453 | 73.5 | 70 | 105 | 635 | 475 | 791 | 58 | 425 | 1128 | 43 | 94.9 |
| XL | 632 | 477 | 73.5 | 70 | 115 | 665 | 525 | 829 | 58 | 425 | 1159 | 43 | 94.9 |
All measurements in millimetres unless marked (°) for angles.
