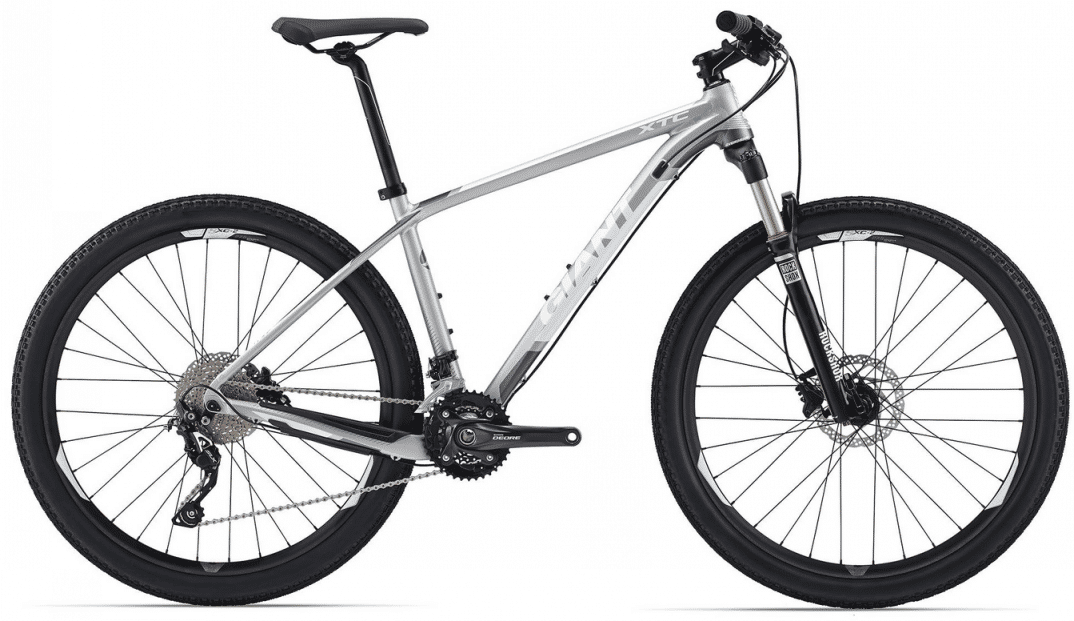

2015 Giant XTC 27.5 geometry
Full frame geometry for the 2015 Giant XTC 27.5, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| S/16 | 596 | 397 | 73.5 | 69.5 | 94 | 574 | 706 | 48 | 429 | 1074 |
| XS/14.5 | 596 | 379 | 73.5 | 69.5 | 94 | 556 | 688 | 48 | 429 | 1054 |
| M/18 | 601 | 410 | 73 | 69.5 | 99 | 594 | 739 | 48 | 429 | 1087 |
| L/20 | 610 | 428 | 73 | 69.5 | 109 | 615 | 775 | 48 | 429 | 1110 |
| XL/22 | 620 | 450 | 73 | 69.5 | 119 | 640 | 798 | 48 | 429 | 1133 |
All measurements in millimetres unless marked (°) for angles.
