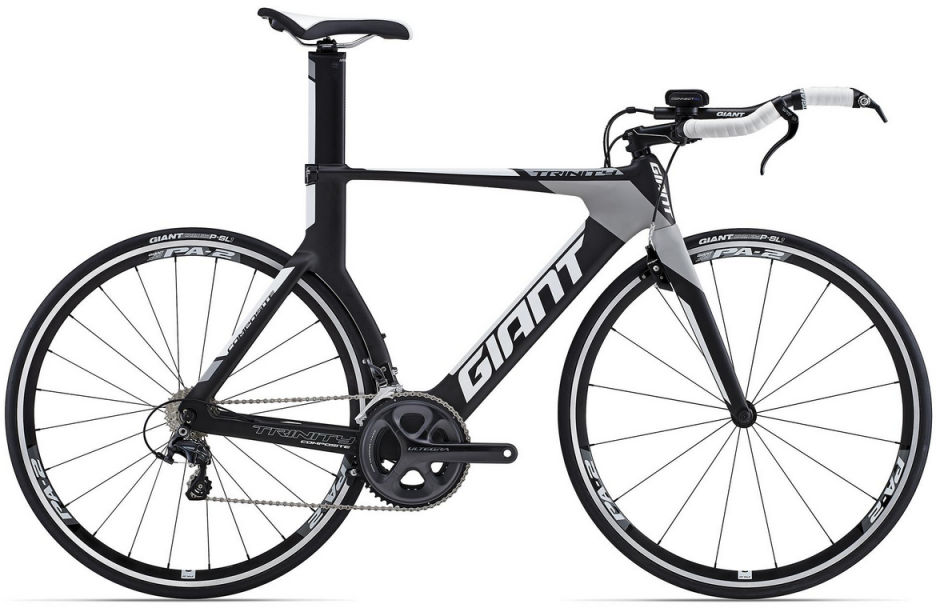

2013 Giant Trinity Composite geometry
Full frame geometry for the 2013 Giant Trinity Composite, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 515 | 404 | 78 | 73 | 110 | 513 | 762 | 68 | 583 | 405 | 982 | 40 | 60 |
| M | 534 | 415 | 78 | 73 | 130 | 529 | 785 | 68 | 601 | 405 | 1001 | 40 | 60 |
| L | 553 | 428 | 78 | 73 | 150 | 546 | 805 | 68 | 620 | 405 | 1019 | 40 | 60 |
| XS | 572 | 441 | 78 | 73 | 170 | 563 | 826 | 68 | 639 | 405 | 1039 | 40 | 60 |
All measurements in millimetres unless marked (°) for angles.
