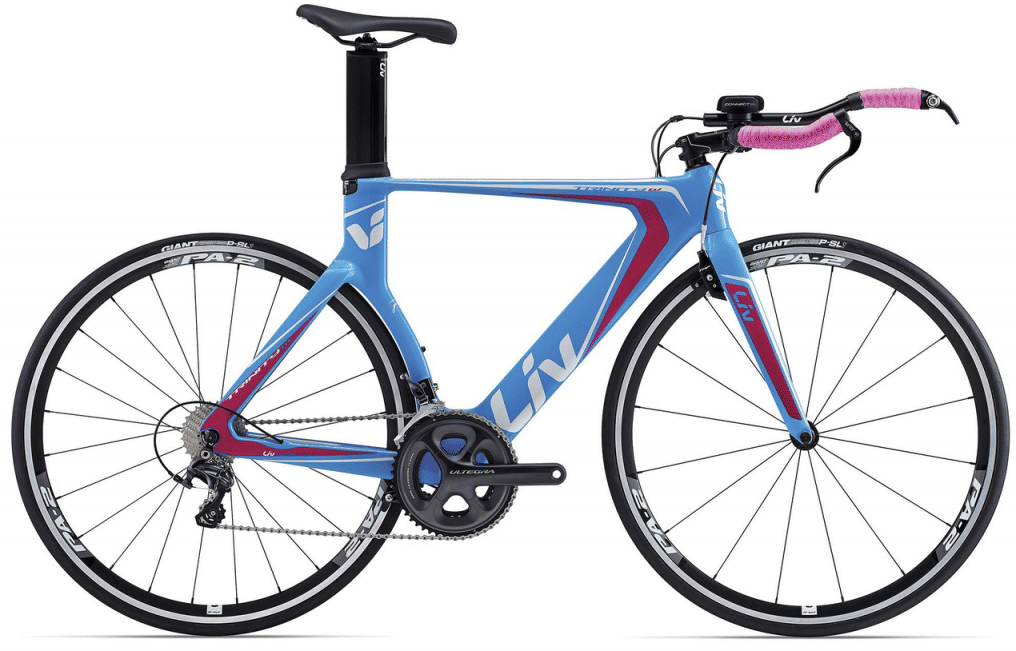

2013 Giant Trinity Composite W geometry
Full frame geometry for the 2013 Giant Trinity Composite W, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 498 | 394 | 78 | 73 | 90 | 499 | 523 | 68 | 568 | 405 | 964 | 40 | 60 |
| S | 513 | 404 | 78 | 73 | 110 | 513 | 530 | 68 | 584 | 405 | 982 | 40 | 60 |
| M | 532 | 417 | 78 | 73 | 130 | 529 | 540 | 68 | 603 | 405 | 1001 | 40 | 60 |
| L | 552 | 431 | 78 | 73 | 150 | 546 | 550 | 68 | 622 | 405 | 1019 | 40 | 60 |
All measurements in millimetres unless marked (°) for angles.
