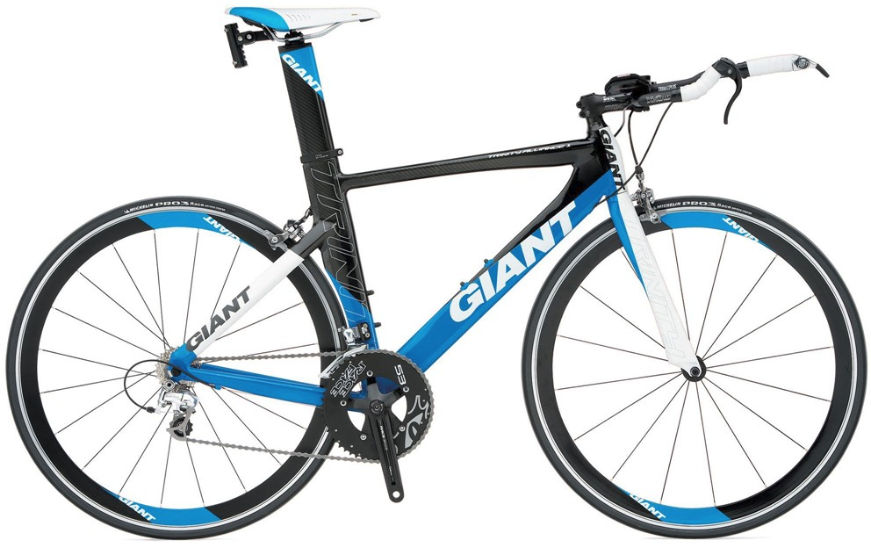

2007 Giant Trinity Alliance geometry
Full frame geometry for the 2007 Giant Trinity Alliance, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 501 | 398 | 78 | 72 | 100 | 505 | 716 | 68 | 589 | 390 | 970 | 45 | 61 |
| M | 515 | 410 | 78 | 72 | 115 | 520 | 737 | 68 | 605 | 390 | 986 | 45 | 61 |
| L | 531 | 427 | 78 | 72.5 | 130 | 540 | 752 | 68 | 622 | 390 | 1004 | 45 | 58 |
| XL | 546 | 449 | 78 | 72.5 | 145 | 565 | 780 | 68 | 649 | 390 | 1030 | 45 | 58 |
All measurements in millimetres unless marked (°) for angles.
