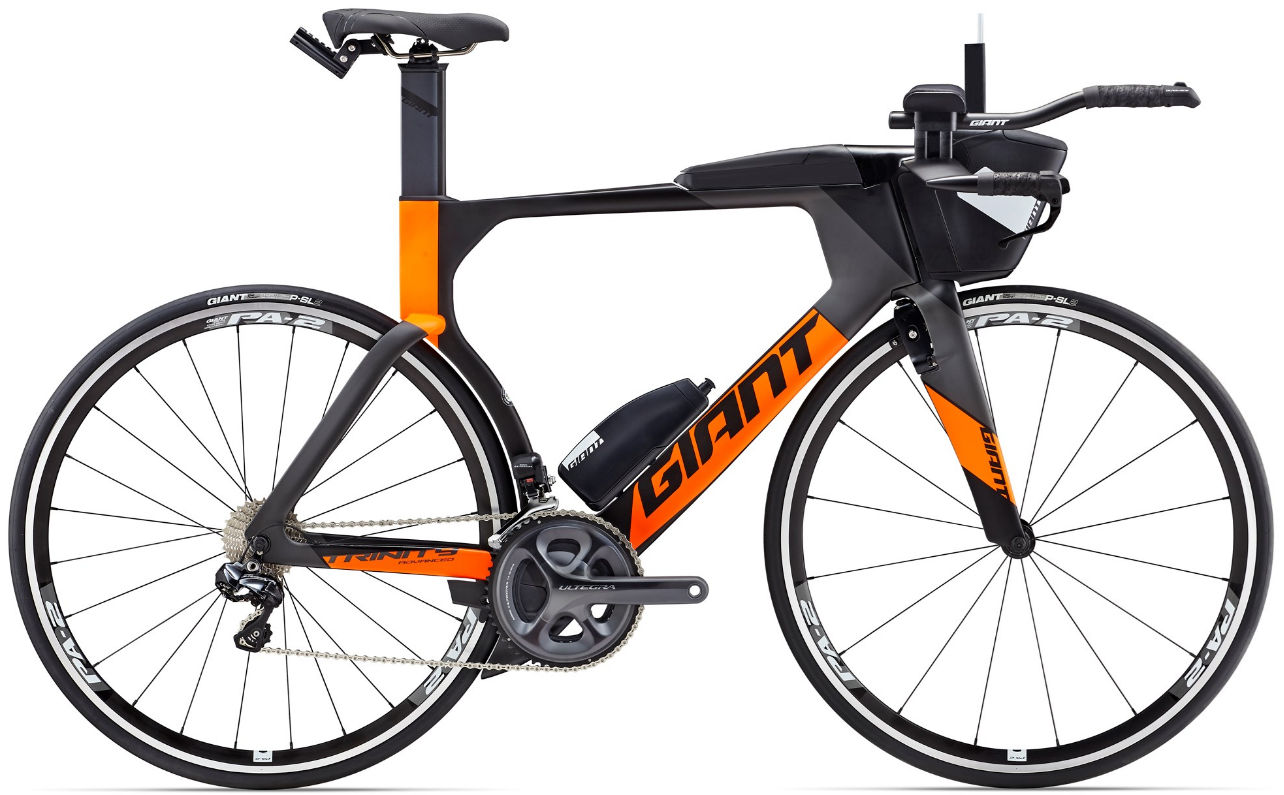

2016 Giant Trinity Advanced Pro geometry
Full frame geometry for the 2016 Giant Trinity Advanced Pro, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 482 | 398 | 76.2 | 73 | 80 | 568 | 742 | 65 | 571 | 405 | 967 | 61 |
| S | 510 | 410 | 76.2 | 73 | 110 | 580 | 767 | 65 | 592 | 405 | 988 | 61 |
| M | 539 | 417 | 76.2 | 73 | 140 | 602 | 790 | 65 | 607 | 405 | 1003 | 61 |
| L | 568 | 423 | 76.2 | 73 | 170 | 608 | 836 | 65 | 622 | 405 | 1018 | 61 |
All measurements in millimetres unless marked (°) for angles.
