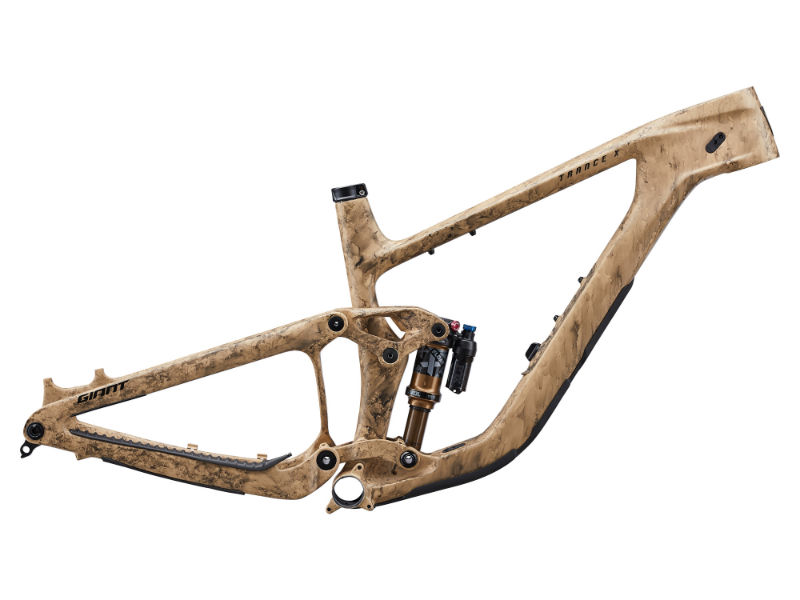

2026 Giant Trance X Advanced geometry
Full frame geometry for the 2026 Giant Trance X Advanced, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 614 | 430 | 77.2 | 64.8 | 100 | 570 | 400 | 737 | 35 | 439 | 1190 | 44 | 131.3 |
| M | 619 | 460 | 77.2 | 64.8 | 105 | 601 | 425 | 741 | 35 | 439 | 1222 | 44 | 131.3 |
| L | 628 | 480 | 77.2 | 64.8 | 115 | 623 | 450 | 759 | 35 | 439 | 1246 | 44 | 131.3 |
| XL | 637 | 510 | 77.2 | 64.8 | 125 | 656 | 475 | 757 | 35 | 439 | 1280 | 44 | 131.3 |
All measurements in millimetres unless marked (°) for angles.
