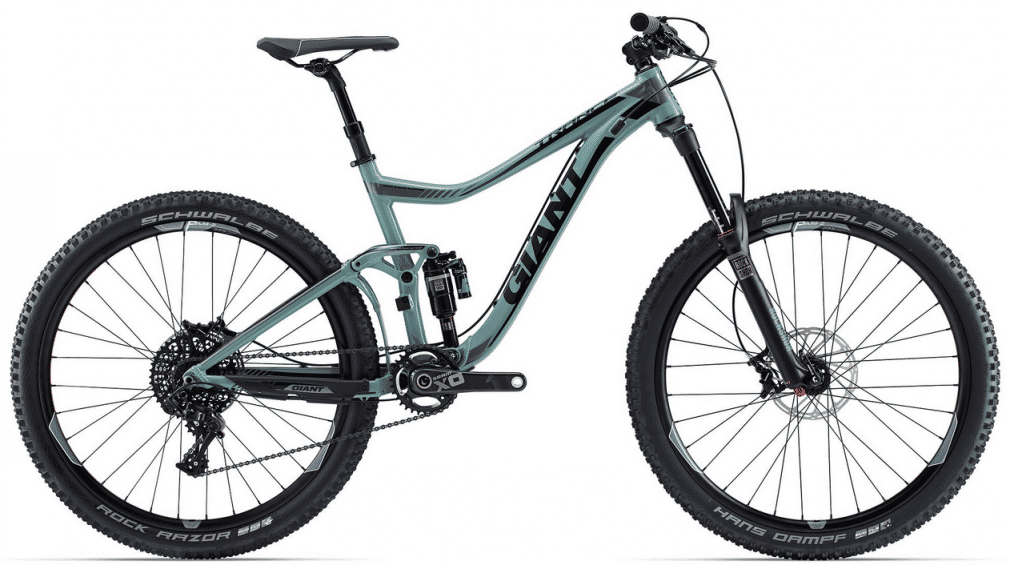

2015 Giant Trance SX 27.5 geometry
Full frame geometry for the 2015 Giant Trance SX 27.5, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| M/18 | 600 | 410 | 72.5 | 66 | 99 | 599 | 729 | 15 | 439 | 1163 |
| S/16 | 600 | 380 | 72.5 | 66 | 99 | 569 | 696 | 15 | 439 | 1133 |
| XS/14.5 | 600 | 362 | 72.5 | 66 | 99 | 551 | 693 | 15 | 439 | 1113 |
| L/20 | 618 | 425 | 72.5 | 66 | 119 | 620 | 770 | 15 | 439 | 1186 |
| XL/22 | 633 | 445 | 72.5 | 66 | 135 | 645 | 785 | 15 | 439 | 1212 |
All measurements in millimetres unless marked (°) for angles.
