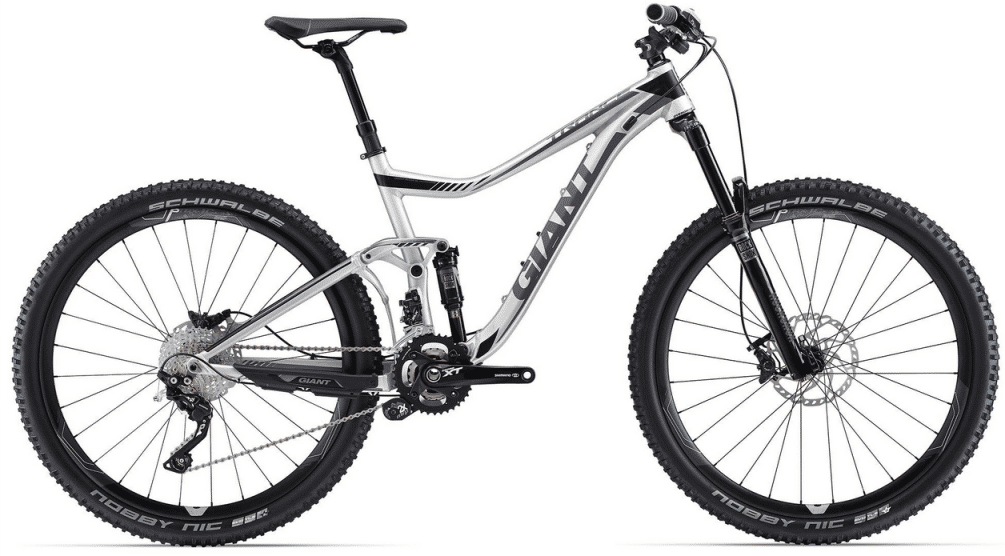

2015 Giant Trance MKI geometry
Full frame geometry for the 2015 Giant Trance MKI, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| M/18 | 605 | 420 | 73.5 | 67 | 99 | 599 | 714 | 15 | 439 | 1156 |
| S/16 | 605 | 390 | 73.5 | 67 | 99 | 569 | 681 | 15 | 439 | 1125 |
| XS/14.5 | 605 | 372 | 73.5 | 67 | 99 | 551 | 678 | 15 | 439 | 1105 |
| L/20 | 623 | 435 | 73.5 | 67 | 119 | 620 | 754 | 15 | 439 | 1176 |
| XL/22 | 638 | 456 | 73.5 | 67 | 135 | 645 | 770 | 15 | 439 | 1204 |
All measurements in millimetres unless marked (°) for angles.
