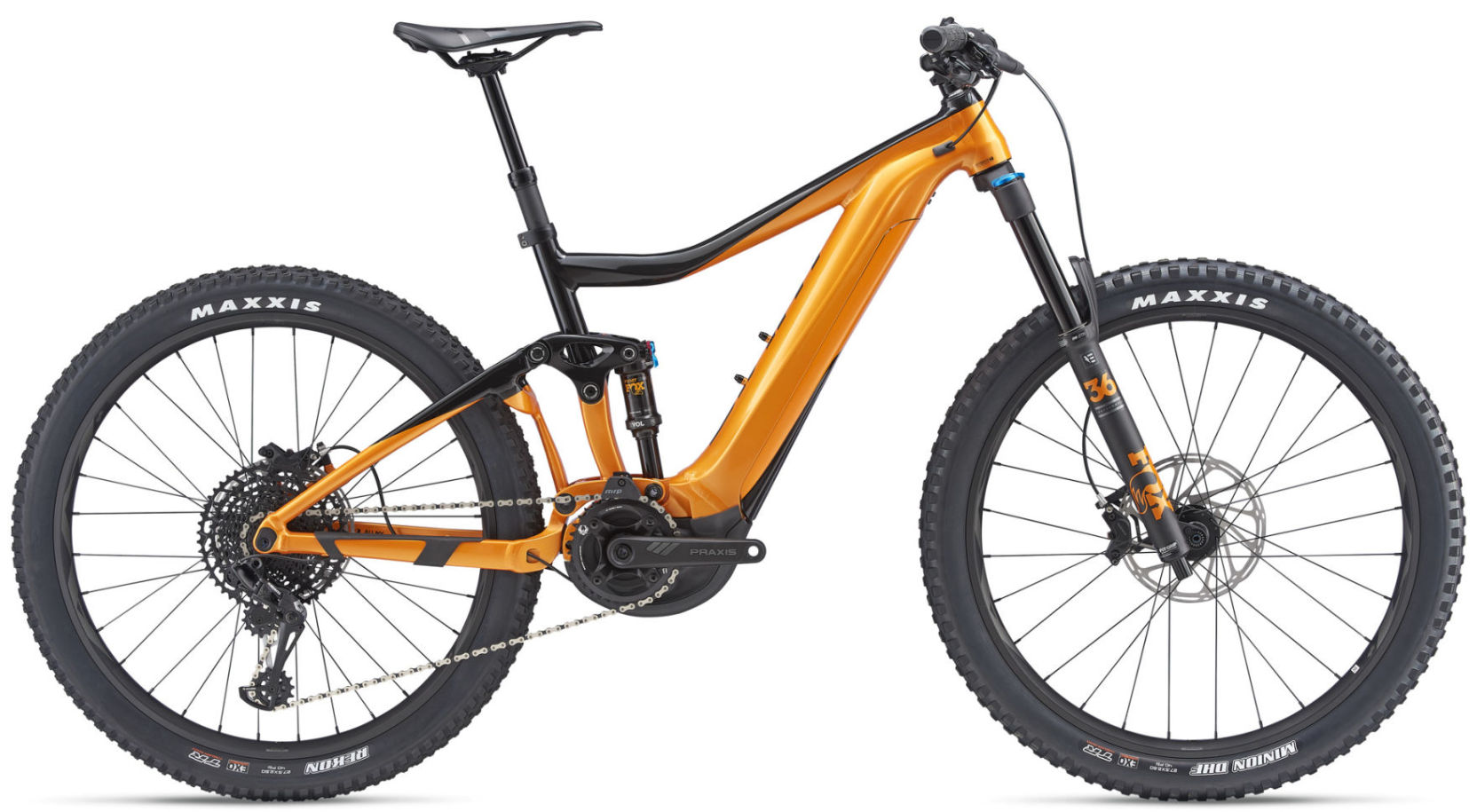

2019 Giant Trance E+ geometry
Full frame geometry for the 2019 Giant Trance E+, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 579 | 418 | 74 | 66.5 | 95 | 585 | 406 | 15 | 714 | 470 | 1184 | 46 | 109 |
| M | 584 | 442 | 74 | 66.5 | 100 | 610 | 445 | 15 | 740 | 470 | 1210 | 46 | 109 |
| L | 593 | 460 | 74 | 66.5 | 110 | 630 | 482 | 15 | 761 | 470 | 1231 | 46 | 109 |
| XL | 611 | 479 | 74 | 66.5 | 130 | 655 | 507 | 15 | 789 | 470 | 1259 | 46 | 109 |
All measurements in millimetres unless marked (°) for angles.
