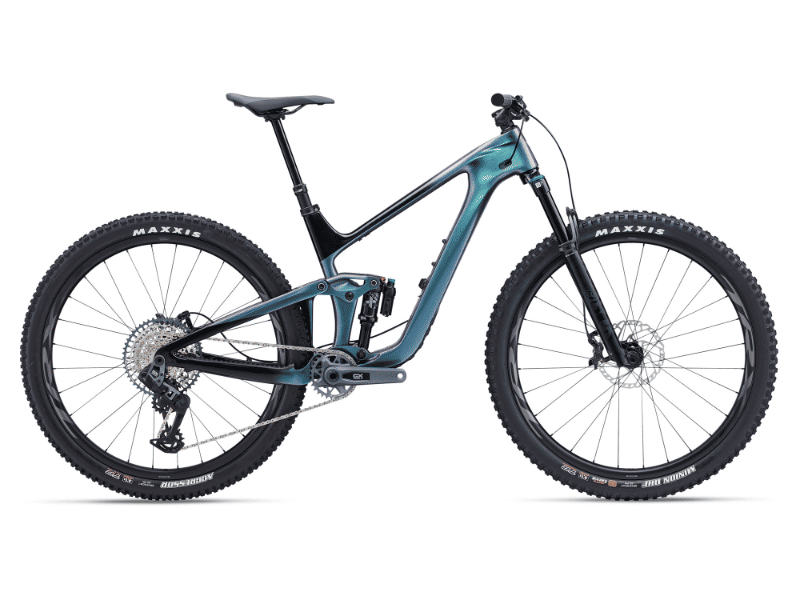

2024 Giant Trance Advanced 29 geometry
Full frame geometry for the 2024 Giant Trance Advanced 29, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 610 | 422 | 77.2 | 65.4 | 100 | 561 | 420 | 729 | 45 | 439 | 1166 | 44 | 126 |
| M | 619 | 447 | 76.3 | 65.5 | 110 | 599 | 430 | 723 | 45 | 439 | 1195 | 44 | 126 |
| L | 628 | 472 | 76.3 | 65.5 | 120 | 626 | 465 | 746 | 45 | 439 | 1124 | 44 | 126 |
| XL | 637 | 507 | 76.3 | 65.5 | 130 | 663 | 496 | 751 | 45 | 439 | 1263 | 44 | 126 |
All measurements in millimetres unless marked (°) for angles.
