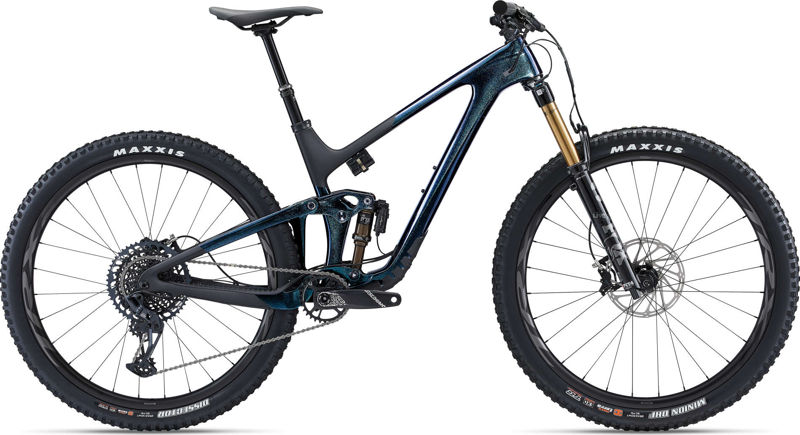

2023 Giant Trance Advance geometry
Full frame geometry for the 2023 Giant Trance Advance, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 617 | 426 | 77.2 | 65.5 | 95 | 566 | 430 | 729 | 40 | 438 | 1173 | 44 | 125.1 |
| M | 621 | 456 | 77.2 | 65.5 | 100 | 597 | 430 | 729 | 40 | 438 | 1205 | 44 | 125.1 |
| L | 631 | 486 | 77.2 | 65.5 | 110 | 629 | 465 | 752 | 40 | 438 | 1239 | 44 | 125.1 |
| XL | 640 | 510 | 77.2 | 65.5 | 120 | 656 | 496 | 760 | 40 | 438 | 1268 | 44 | 125.1 |
All measurements in millimetres unless marked (°) for angles.
