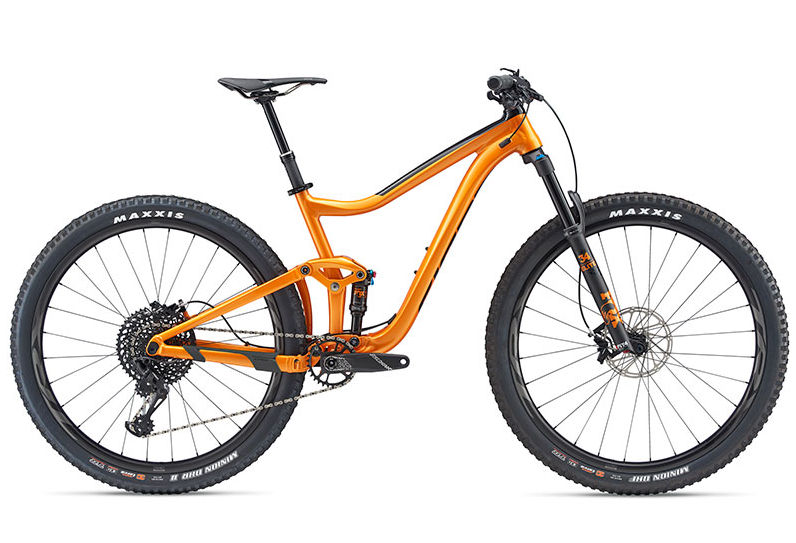

2019 Giant Trance 29 geometry
Full frame geometry for the 2019 Giant Trance 29, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 599 | 426 | 74.5 | 66.5 | 95 | 592 | 380 | 708 | 35 | 721 | 435 | 1154 | 44 | 117 |
| L | 613 | 462 | 74.5 | 66.5 | 110 | 632 | 464 | 761 | 35 | 763 | 435 | 1196 | 44 | 117 |
| M | 613 | 442 | 74.5 | 66.5 | 110 | 612 | 431 | 740 | 35 | 743 | 435 | 1176 | 44 | 117 |
| XL | 622 | 480 | 74.5 | 66.5 | 120 | 652 | 496 | 785 | 35 | 785 | 435 | 1218 | 44 | 117 |
All measurements in millimetres unless marked (°) for angles.
