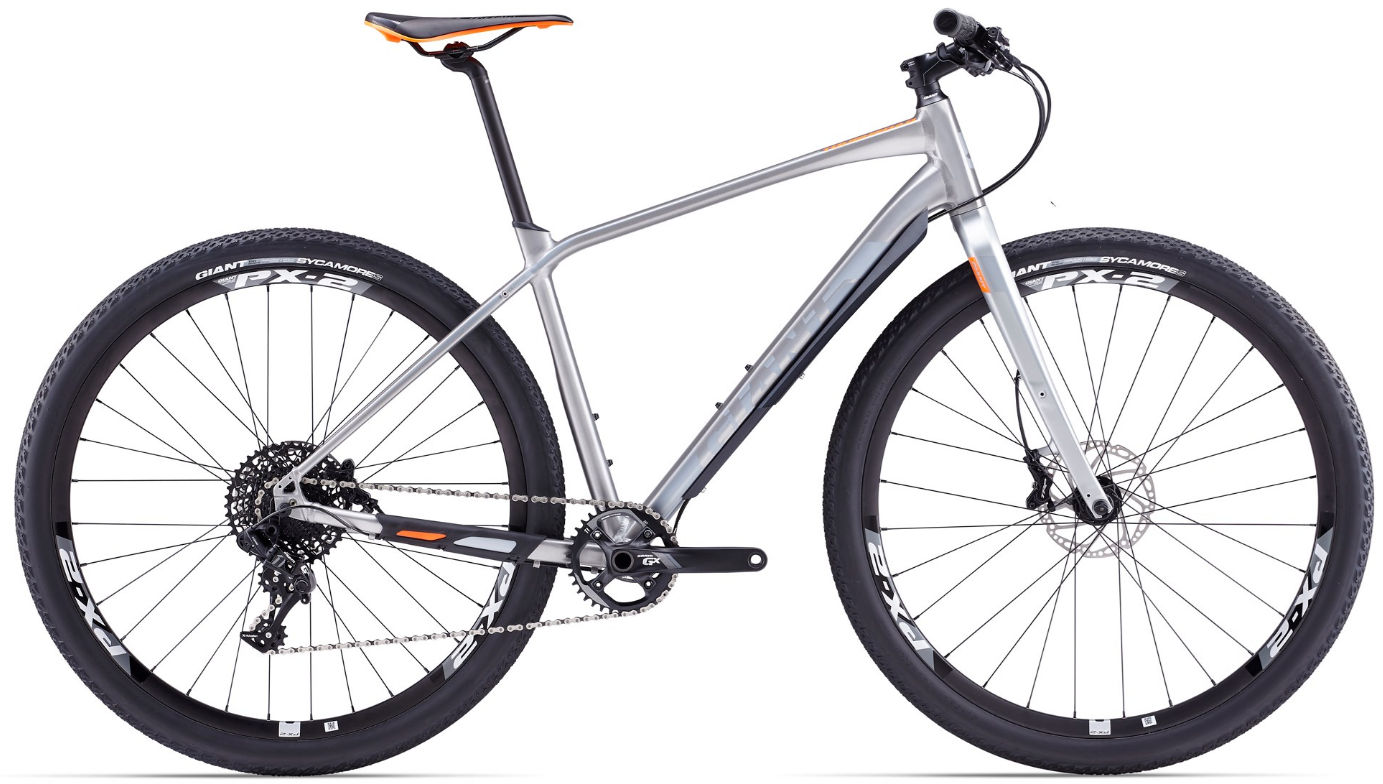

2017 Giant Toughroad SLR MKII geometry
Full frame geometry for the 2017 Giant Toughroad SLR MKII, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|
| XS | 555 | 410 | 73 | 71.5 | 100 | 580 | 696 | 450 | 1061 |
| S | 578 | 408 | 73 | 71.5 | 125 | 585 | 724 | 450 | 1067 |
| M | 602 | 411 | 73 | 71.5 | 150 | 595 | 754 | 450 | 1078 |
| L | 623 | 403 | 72 | 72 | 170 | 605 | 795 | 450 | 1071 |
| XL | 642 | 405 | 71.5 | 72 | 190 | 620 | 864 | 450 | 1080 |
All measurements in millimetres unless marked (°) for angles.
