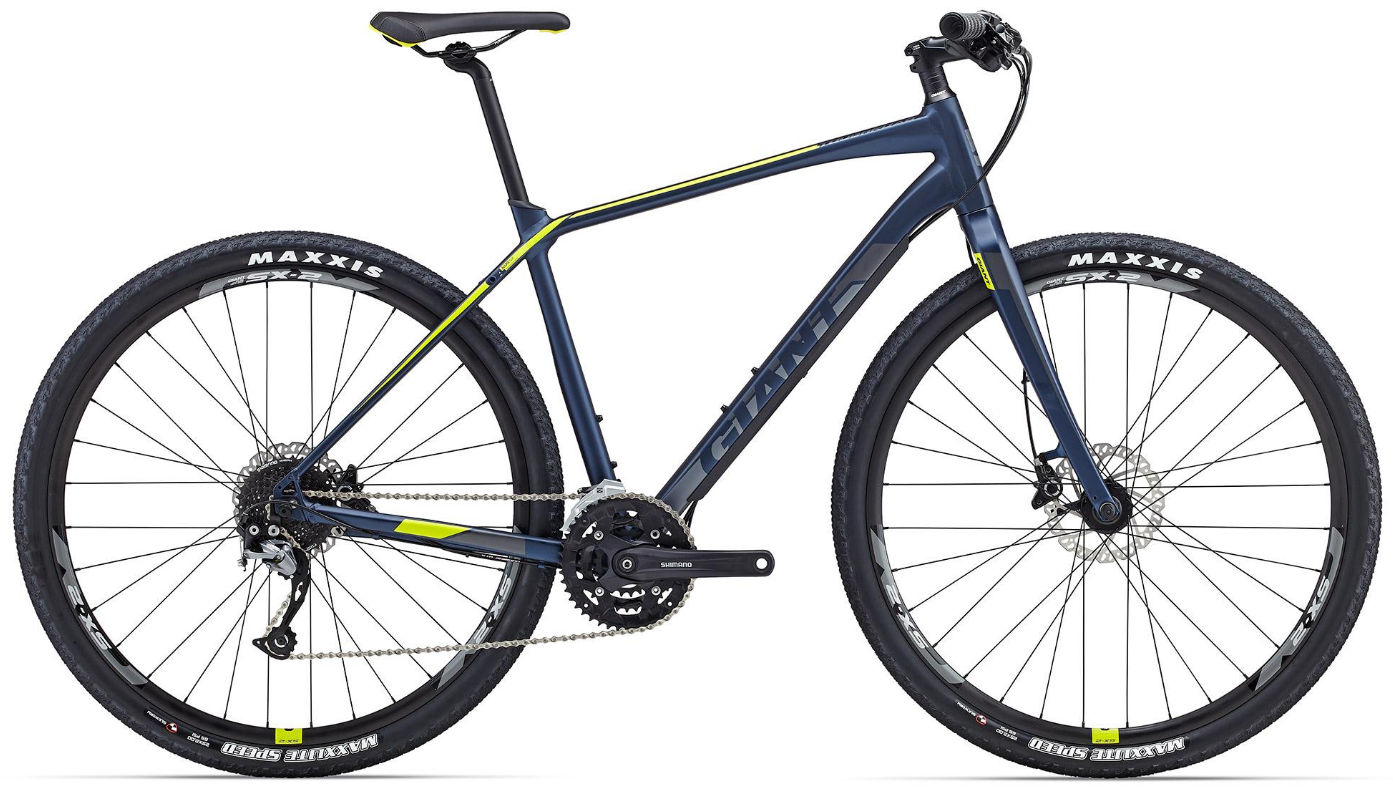

2016 Giant Toughroad SLR MKI geometry
Full frame geometry for the 2016 Giant Toughroad SLR MKI, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| XS/17 | 554 | 406 | 73 | 71.5 | 117 | 226 | 770 | 607 | 450 | 1057 |
| S/18 | 578 | 408 | 73 | 71.5 | 124 | 230 | 795 | 617 | 450 | 1067 |
| M/19 | 601 | 411 | 73 | 71.5 | 150 | 234 | 818 | 627 | 450 | 1077 |
| L/20.5 | 622 | 403 | 72 | 72 | 170 | 238 | 841 | 622 | 450 | 1072 |
| XL/22 | 641 | 405 | 71.5 | 72 | 191 | 244 | 864 | 630 | 450 | 1080 |
All measurements in millimetres unless marked (°) for angles.
