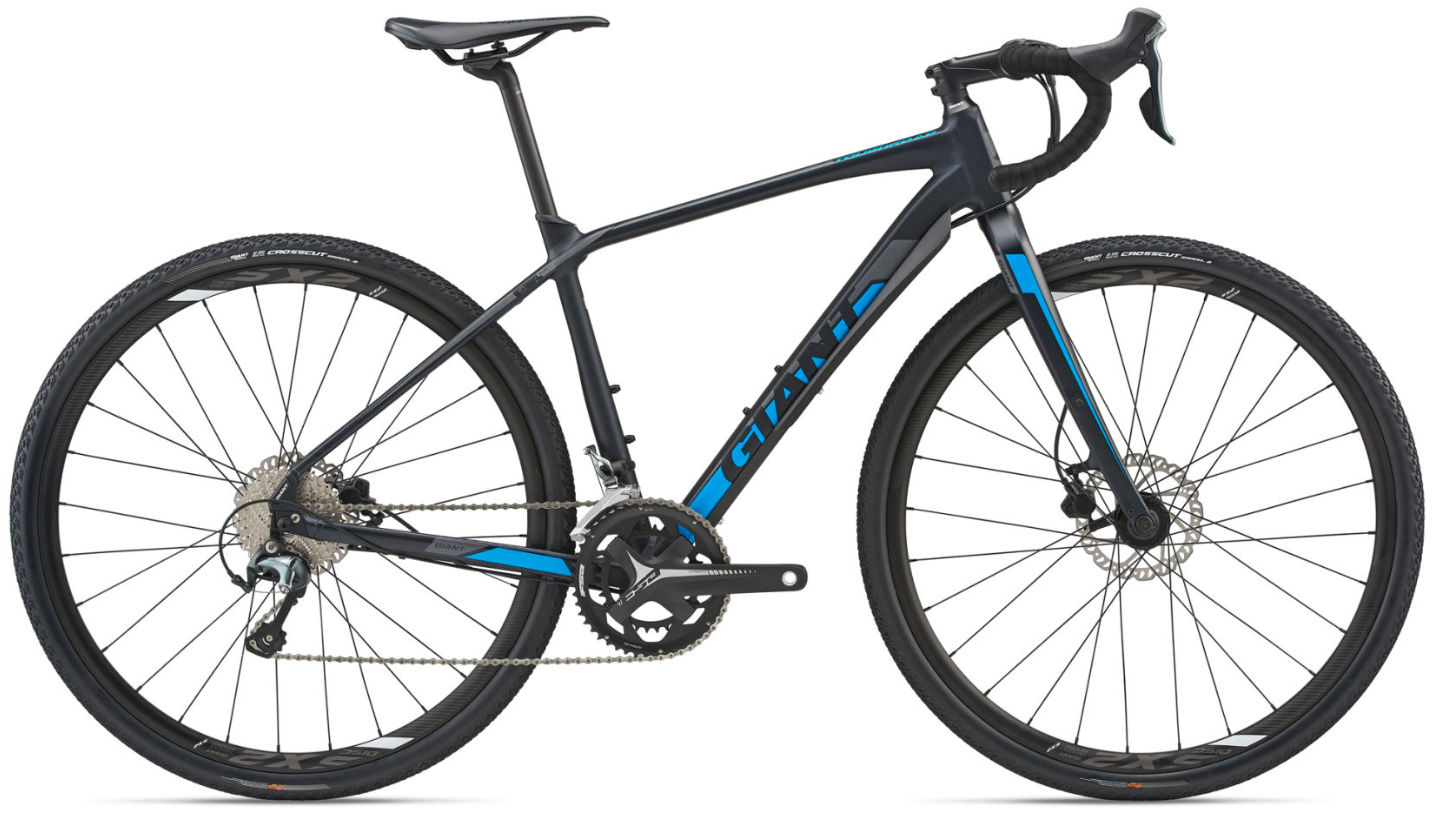

2017 Giant Toughroad SLR GX geometry
Full frame geometry for the 2017 Giant Toughroad SLR GX, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 551 | 372 | 74 | 70.5 | 100 | 530 | 390 | 697 | 70 | 447 | 450 | 1031 | 42 | 83 |
| S | 560 | 374 | 73.5 | 70.5 | 110 | 540 | 420 | 720 | 70 | 453 | 450 | 1037 | 42 | 83 |
| M | 574 | 380 | 73.5 | 70.5 | 125 | 550 | 460 | 753 | 70 | 464 | 450 | 1048 | 42 | 83 |
| ML | 591 | 384 | 73 | 71 | 140 | 565 | 490 | 777 | 70 | 472 | 450 | 1053 | 42 | 79 |
| L | 605 | 389 | 72.5 | 71 | 155 | 580 | 520 | 802 | 70 | 481 | 450 | 1062 | 42 | 79 |
| XL | 624 | 393 | 72.5 | 71 | 175 | 590 | 550 | 828 | 70 | 492 | 450 | 1073 | 42 | 79 |
All measurements in millimetres unless marked (°) for angles.
