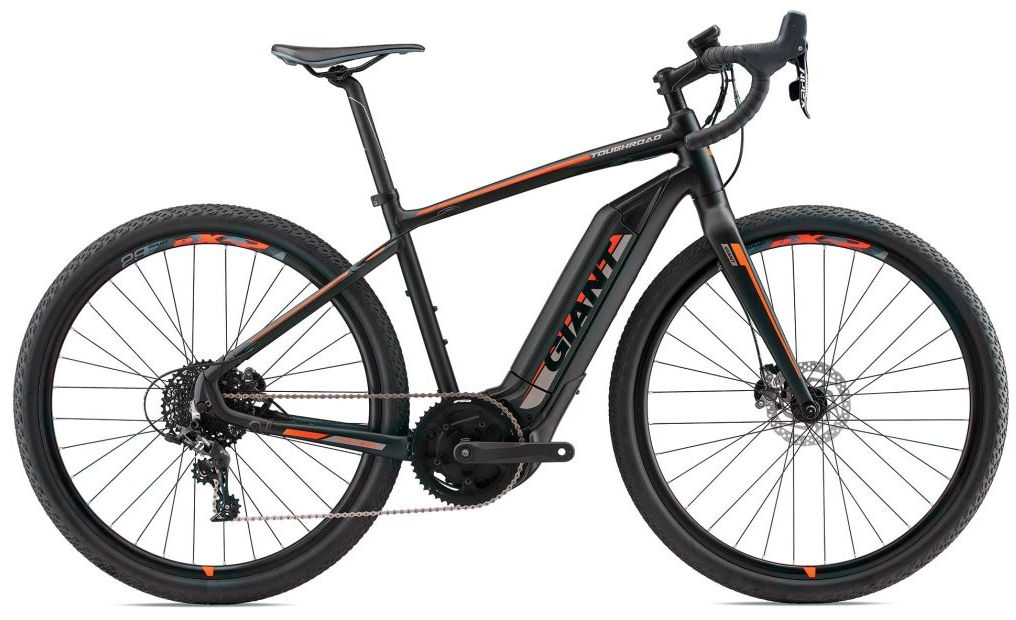

2019 Giant Toughroad E+ GX geometry
Full frame geometry for the 2019 Giant Toughroad E+ GX, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M | 581 | 382 | 73 | 71 | 135 | 560 | 485 | 752 | 70 | 591 | 455 | 1036 | 42 | 76 |
| S | 581 | 378 | 74 | 71 | 135 | 545 | 435 | 722 | 70 | 586 | 455 | 1031 | 42 | 79 |
| L | 605 | 400 | 73 | 71 | 160 | 585 | 535 | 786 | 70 | 610 | 455 | 1056 | 42 | 76 |
| XL | 624 | 402 | 72 | 71 | 180 | 605 | 585 | 821 | 70 | 619 | 455 | 1065 | 42 | 76 |
All measurements in millimetres unless marked (°) for angles.
