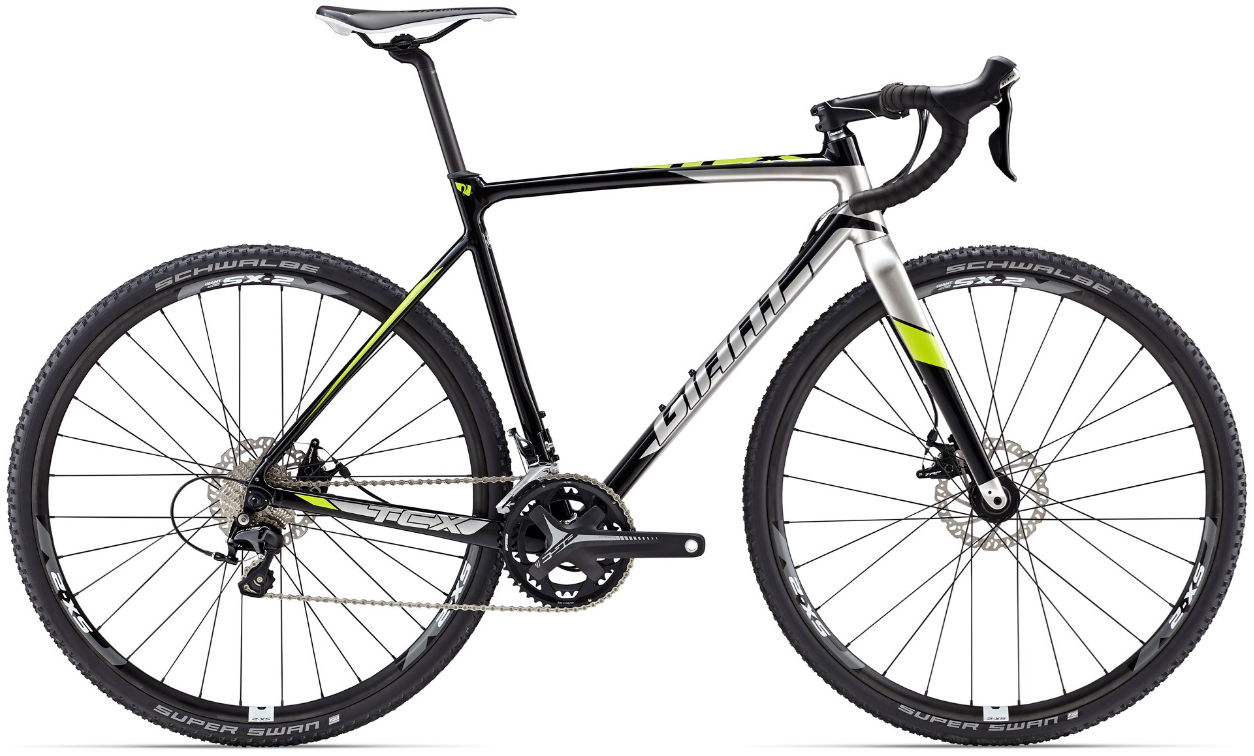

2017 Giant TCX SLR MKII geometry
Full frame geometry for the 2017 Giant TCX SLR MKII, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 526 | 369 | 74.5 | 71 | 115 | 515 | 475 | 758 | 60 | 585 | 430 | 1008 | 50 | 72 |
| S | 540 | 370 | 73.5 | 71 | 130 | 530 | 500 | 758 | 60 | 591 | 430 | 1014 | 50 | 68 |
| M | 556 | 375 | 73 | 71.5 | 145 | 545 | 525 | 803 | 60 | 596 | 430 | 1019 | 50 | 65 |
| ML | 572 | 385 | 73 | 72 | 160 | 560 | 545 | 821 | 60 | 607 | 430 | 1030 | 50 | 62 |
| L | 589 | 395 | 73 | 72.5 | 175 | 575 | 555 | 832 | 60 | 617 | 430 | 1040 | 50 | 59 |
| XL | 603 | 406 | 73 | 72.5 | 190 | 590 | 565 | 843 | 60 | 632 | 430 | 1055 | 50 | 59 |
All measurements in millimetres unless marked (°) for angles.
