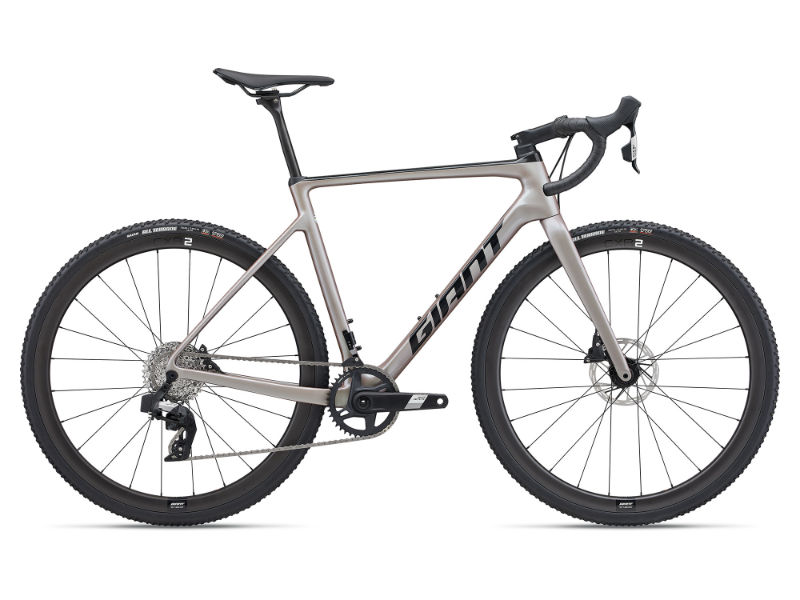

2024 Giant TCX Advanced Pro geometry
Full frame geometry for the 2024 Giant TCX Advanced Pro, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 540 | 370 | 73.5 | 71 | 133 | 530 | 505 | 788 | 60 | 430 | 1014 | 50 | 68.3 |
| M | 556 | 375 | 73 | 71.5 | 148 | 545 | 525 | 807 | 60 | 430 | 1020 | 50 | 65.1 |
| ML | 572 | 385 | 73 | 72 | 163 | 560 | 545 | 826 | 60 | 430 | 1030 | 50 | 61.8 |
| L | 589 | 395 | 73 | 72.5 | 178 | 575 | 555 | 832 | 60 | 430 | 1040 | 50 | 58.6 |
| XL | 603 | 406 | 73 | 72.5 | 193 | 590 | 565 | 845 | 60 | 430 | 1055 | 50 | 58.6 |
All measurements in millimetres unless marked (°) for angles.
