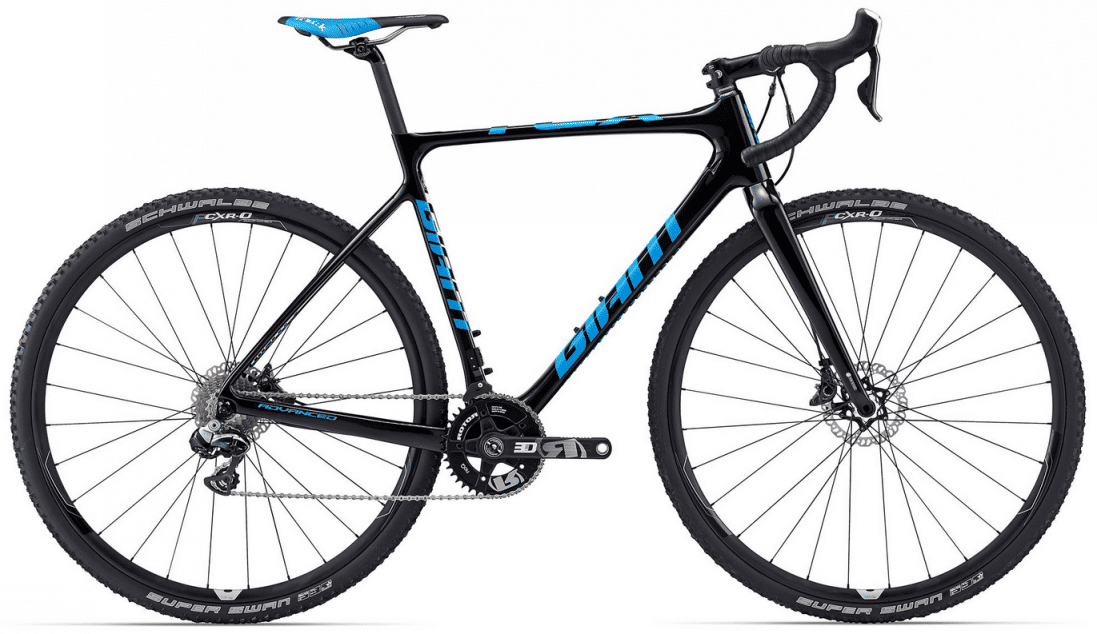

2014 Giant TCX Advanced Pro MKI geometry
Full frame geometry for the 2014 Giant TCX Advanced Pro MKI, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S/50 | 543 | 369 | 73.5 | 71 | 130 | 530 | 757 | 60 | 585 | 430 | 1014 | 45 | 71 |
| M/52.5 | 559 | 374 | 73 | 71.5 | 145 | 545 | 803 | 60 | 590 | 430 | 1019 | 45 | 68 |
| ML/54.5 | 575 | 384 | 73 | 72 | 160 | 560 | 820 | 60 | 601 | 430 | 1030 | 45 | 64 |
| L/55.5 | 592 | 394 | 73 | 72.5 | 175 | 575 | 833 | 60 | 611 | 430 | 1040 | 45 | 61 |
| XL/56.5 | 606 | 405 | 73 | 72.5 | 190 | 590 | 843 | 60 | 626 | 430 | 1055 | 45 | 61 |
All measurements in millimetres unless marked (°) for angles.
